Solar Panel Feature:

1. Use of high-performance monocrystalline silicon solar panels, aluminum alloy frame;

2. High strength tempered glass floor;

3. Integrated junction box, waterproof IP66;

4. Standard with A + grade 18650 ternary lithium battery;

5. Battery built-in charge protection board, effectively prevent overcharge and over discharge, so that the battery life longer;

6. Solar panels with metal wall bracket, can be adjusted to the solar direction;

7. Size :2*60W (630×540×18mm)

8. Lithium Battery :40AH/60AH/80AH, Endurance time:60/84/120 hours.

4G/3G feature:

1.Use of industrial 4G module, stable, long life, Anti-interference ability; 4G main chip:ZX297520M,WIFI chip:RTL8192ES-CG;

2. 4G all Netcom, support telecommunications, Unicom, mobile 4G / 3G / 2G, support Europe US Japan African 4G standards;

3. Network type :FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE；

4. Operating frequency: LTE B1/B3/B8/B38/B39/B40/B41,WCDMA 2100/900MHz,TD-SCDMA B34/B39,GSM/GPRS/EDGE: 900/ 1800MHz；

5. Rate:FDD-LTE/TDD-LTE:up speed 50M / down speed 150Mbps,HSPA+:up speed 5.76M / down speed 21Mbps
TD-SCDMA: up speed 2.2Mbps / down speed 2.8Mbps;

6. Support network equipment using wired and wireless WIFI two access methods;With wireless router function, the maximum support 8 devices WIFI access (IPC phone computer);

7. WIFI:2412MHz-2472MHz,802.11b/g/n,The maximum transfer rate is up to 72Mbps;USIM/SIM card: Micro SIM card

8. Built-in WEB client, can view the 4G signal strength, modify the login password, wireless access password and others;

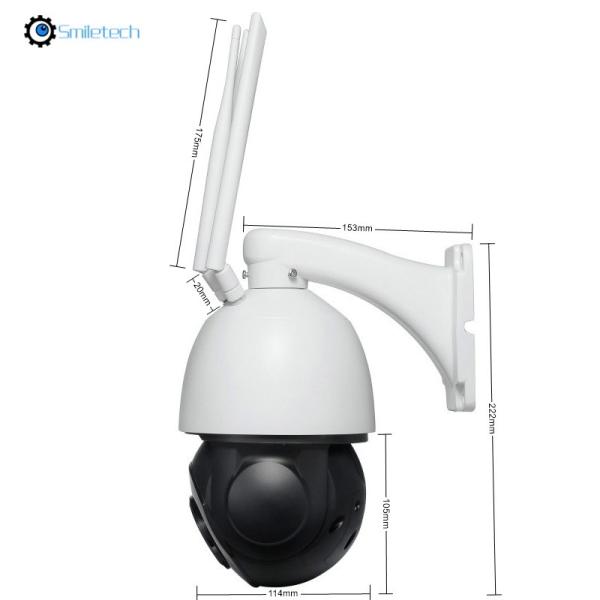

Product features:

1.Adopt high performance 1/2.8" CMOS. support 5.0MP/2.0MP resolution.

2.Support dual stream compression technology. Optional function: Audio / Alarm / SD card slot.

3.Using imported dot matrix large glass lamps and imported high speed glass lamp light, to ensure the IR distance 150 m; product life can reach 30,000 hours.

4.Intelligent infrared control technology can automatically control the infrared light according to the environment. Under the premise of ensuring monitoring results, it can effectively enhance the infrared lamp's life and ensure the product stability.

5.Constant current circuit design, to ensure stable operation of the infrared light. And it won't reduce the infrared lamps' life which caused by the changing of the power supply.

6.Efficient cooling structure, using physical means heat, which can effectively reduce the temperature of the inside dome camera, to prevent the inner to be fogging, and to ensure the machine's stability.

7.Works with Connect using any iOS / Android device or our dedicated PC CMS Software.

8.Live Mobile view with advanced peer to peer(P2P) technology seamless connectivity worldwide. No DDNS or Port forwarding required.

Technical Parameter:
