THT Type Pcb Mount Rj45 Jack C0-0351 NL 1500 Vrms Hipot Test For Switches
THT Type Pcb Mount Rj45 Jack C0-0351 NL 1500 Vrms Hipot Test For Switches
Specifications
Brand Name :
Shareway
Model Number :
JC0-0351NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray, Tape or Reel
Product name :
10P8C 2*2 Multi-port RJ45 Modular Jack JC0-0351NL used for switches
Application :
switches
Port :
2*2 Multi-port
Type :
Multi-port RJ45 Modular Jack
Mount type :
THT type
Pin :
6,8,10,12,14,16,20,40Pins
Description

10P8C 2*2 Multi-port RJ45 Modular Jack JC0-0351NL used for switches

Description:

1. Turn Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2. Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3. Insertion Loss:
1-65MHz:-1.0dB MAX
4. Return Loss(dB MIN):
1-10MHz: -20

10-30MHz:-16
30-60MHz: -12

60-80MHz:-10
5. Cross talk(dB MIN):
1-30MHz: -40

30-60MHz: -35
60-100MHz:-30
6. Common Mode Rejection(dB MIN):
1-50MHz: -40

50-150MHz: -35
7. Hipot Test: 1500Vrms
8. Operating Temperature Range: 0℃ TO 70℃

Part Number JC0-0351NL
Port 2*2 Multi-port
LED Option YELLOW/GREEN
Latch TAB UP/TAB DOWN
Number of Ports

PCB Mount Angle SIDE ENTRY
Package Height (mm) 34.67
Package Length (mm) 31.40
Package Width (mm) 28.24
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO +70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

10P8C 2*2 Multi-port RJ45 Modular Jack JC0-0351NL used for switches

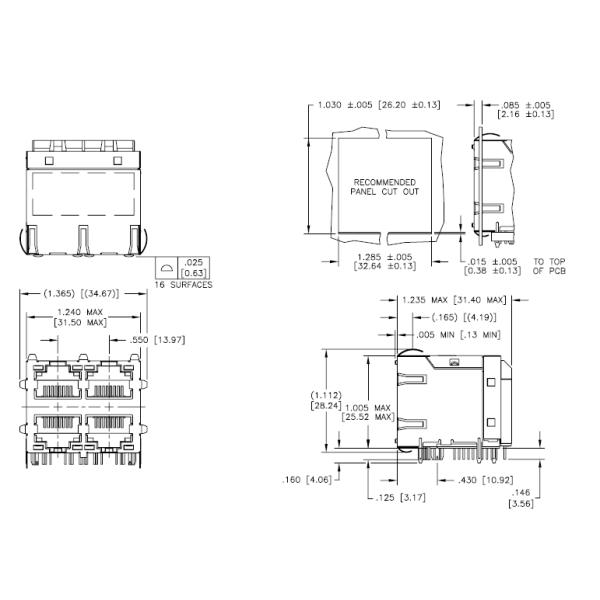

Shape and Dimensions:

THT Type Pcb Mount Rj45 Jack C0-0351 NL 1500 Vrms Hipot Test For Switches
