JXR0-0005NL RJ45 Modular Jack PCB Connector Jack With Light Without Finger
JXR0-0005NL RJ45 Modular Jack PCB Connector Jack With Light Without Finger
Specifications
Brand Name :
Shareway
Model Number :
JXR0-0005NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray in Carton
Product name :
RJ45 Modular Jack JXR0-0005NL PCB connector jack With light Without finger
Finger :
Without
Suitable for :
Reflow solder mounting
Mount :
THT type
Pin :
8p8c
Speed :
100Base-T
Description

RJ45 Modular Jack JXR0-0005NL PCB connector jack With light Without finger

Description:

  • High Temperature rated parts designed for use in Pin-in-Paste processing with 260 C max reflow temperature
  • Meets IEEE802.3 specification
  • 350μH minimum OCL with 8mA DC bias current
  • Extended Temperature range from -40 C to 85 C

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

Part
Number		 EMI
Fingers		 LED
(L/R)		 Insertion
Loss
1 - 65MHz
(dB TYP)		 1 - 10 (Vrms)
MHz		 30
MHz		 60 - 80
MHz		 1 - 50
MHz		 50 - 130
MHz		 1 - 10
MHz		 30 - 60
MHz		 60 - 100
MHz

Hipot

(Vrms)
JXR0-0001NL YES - -1.0 -20 -16 -10 -30 -20 -40 -35 -30 1500
JXR0-0005NL NO - -1.0 -20 -16 -10 -30 -20 -40 -35 -30 1500
JXR0-0011NL YES G/Y -1.0 -20 -16 -10 -30 -20 -40 -35 -30 1500
JXR0-0015NL NO G/Y -1.0 -20 -16 -10 -30 -20 -40 -35 -30 1500

RJ45 Modular Jack JXR0-0005NL PCB connector jack With light Without finger

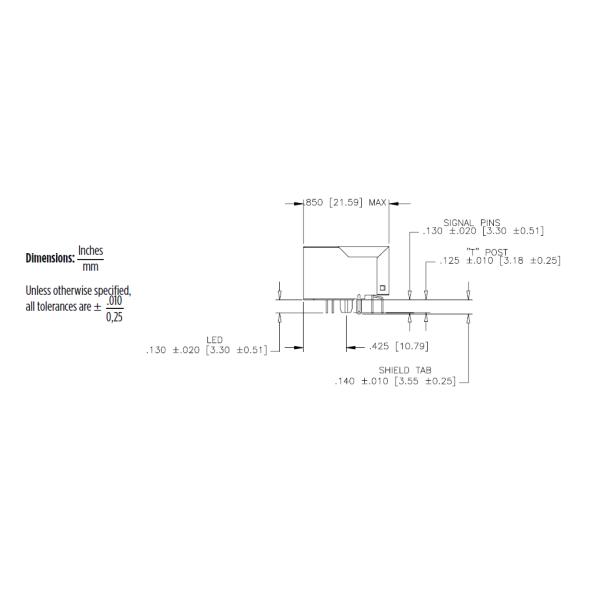

Shape and Dimensions:

JXR0-0005NL RJ45 Modular Jack PCB Connector Jack With Light Without Finger

JXR0-0005NL RJ45 Modular Jack PCB Connector Jack With Light Without Finger
