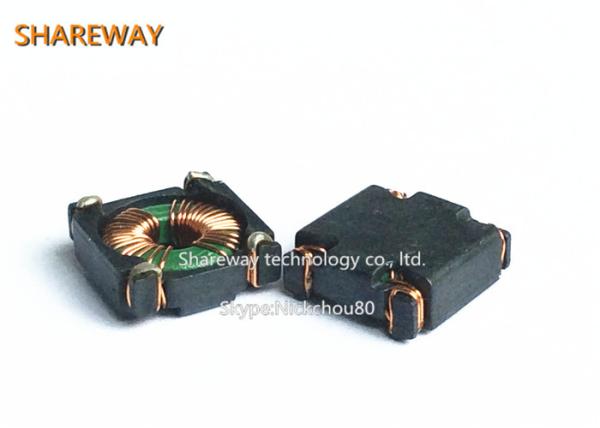

MOX - CMCSM SERIES Common Mode Toroidal Core Inductor / Toroidal Power Inductor
MOX - CMCSM SERIES Common Mode Toroidal Core Inductor / Toroidal Power Inductor
Specifications
Brand Name :
Shareway
Model Number :
MOX-CMCSM SERIES
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Reel
Product name :
MOX-CMCSM SERIES Common Mode Choke Coil Toroidal Power Inductor
shape :
toroidal
color :
Gold,Red
Material :
Ferrite core
Operating Temperature :
-40℃ to 125℃
Applications :
Electromagnetic inductor
Description

MOX-CMCSM SERIES Common Mode Choke Coil Toroidal Power Inductor

Description:

Temp. Rise : 45°C at maximum current.
Resistance to solder heat : 260°C. for 10 (ten) seconds.
Operating temperature: -40°C to +105°C.
Storage temperature: -40°C to +125°C.
RoHS Compliant..

Tolerances unless otherwise specified: 0~10=±0.15, 10~20=±0.20, 20~40=±0.25, 40~70=±0.30, ≥70=±0.40

Part Number L
(mH)		 Test Frequency
(KHz)		 DCR
(Ω)
Max.		 IDC
(A)
Max.
MOX-CMCSM-12-122Y 1.17 10.00 0.220 1.25
MOX-CMCSM-12-881Y 0.885 10.00 0.110 1.65
MOX-CMCSM-16-102Y 1.00 10.00 0.060 1.55
MOX-CMCSM-16-103Y 10.00 10.00 0.450 1.05
MOX-CMCSM-16-223Y 22.00 10.00 0.850 0.55
MOX-CMCSM-18-102Y 1.00 10.00 0.050 3.65
MOX-CMCSM-18-302Y 3.00 10.00 0.080 2.55
MOX-CMCSM-19-221Y 0.225 10.00 0.060 3.35
MOX-CMCSM-19-801Y 0.768 10.00 0.040 4.75
MOX-CMCSM-19-132Y 1.32 10.00 0.060 3.32
MOX-CMCSM-19-591Y 0.59 10.00 0.020 5.65
MOX-CMCSM-19-162Y 1.59 10.00 0.080 2.83

MOX-CMCSM SERIES Common Mode Choke Coil Toroidal Power Inductor

Shape and Dimensions:

MOX - CMCSM SERIES Common Mode Toroidal Core Inductor / Toroidal Power Inductor

MOX - CMCSM SERIES Common Mode Toroidal Core Inductor / Toroidal Power Inductor
