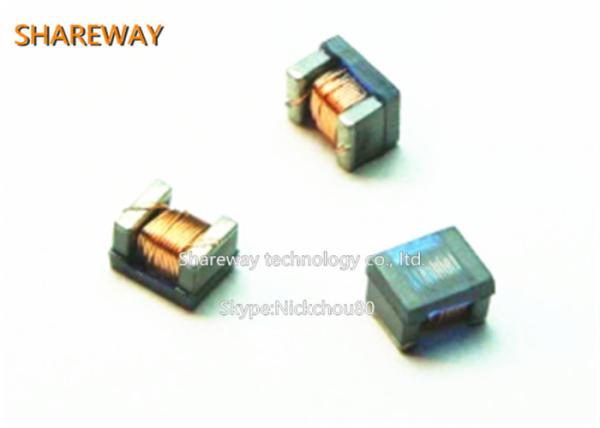

3.2X1.6X1.9mm Common Mode Toroidal Chokes / Surface Mount Choke MOX-CMCS-1206S
3.2X1.6X1.9mm Common Mode Toroidal Chokes / Surface Mount Choke MOX-CMCS-1206S
Specifications
Brand Name :
Shareway
Model Number :
MOX-CMCS-1206S
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
2000pcs/Reel
Product name :
-40°C to +85°C 3.2*1.6*1.9mm Common Mode Choke MOX-CMCS-1206S
Size :
3.2*1.6*1.9mm
Type :
surface mount common mode chokes
Application :
LCD televisions and digital cameras
Operating temperature :
-40°C to +85°C
Shield :
Shielded / unshielded
Description

-40°C to +85°C 3.2*1.6*1.9mm Common Mode Choke MOX-CMCS-1206S

Description:

MOX-CMCS series of surface mount common mode chokes are widely
used in cable modems, notebooks, LCD televisions and digital cameras. The
wire wound design provides a low DC resistance and high current tolerance.

Similar Product:

Part Number Common Mode
Impedance ¹
@ 100 MHz (Ω)		 Rated
Voltage
V (DC)		 Withstanding
Voltage
V (DC)		 Rated
Current²
(mA) Max.		 DC
Resistance
(Ω) Max.		 Insulation
Resistance
(mΩ) Max.
MOX-CMCS-1206S-670T 90.0 50.0 125.0 370.0 0.30 10.0
MOX-CMCS-1206S-900T 160.0 50.0 125.0 340.0 0.40 10.0
MOX-CMCS-1206S-121T 260.0 50.0 125.0 310.0 0.50 10.0
MOX-CMCS-1206S-181T 600.0 50.0 125.0 260.0 080 10.0
MOX-CMCS-1206S-261T 1000.0 50.0 125.0 230.0 1.00 10.0
MOX-CMCS-1206S-361T 2200.0 50.0 125.0 200.0 1.20 10.0

-40°C to +85°C 3.2*1.6*1.9mm Common Mode Choke MOX-CMCS-1206S

Shape and Dimensions:

3.2X1.6X1.9mm Common Mode Toroidal Chokes / Surface Mount Choke MOX-CMCS-1206S

L (LENGTH) : 3.20 ± 0.10

W (WIDTH) : 1.60 ± 0.10

H (THICKNESS) : 1.90 ± 0.10

S (TERMINAL) : 0.60 ± 0.30

T (TERMINAL) : 0.60 ± 0.30
