Space efficient size 16.5 mm square less than 7.5 mm tall Flyback Transformers
Space efficient size 16.5 mm square less than 7.5 mm tall Flyback Transformers
Specifications
Brand Name :
Shareway
Model Number :
POE60D-18L_
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
400pcs/reel
Product name :
Space efficient size 16.5 mm square less than 7.5 mm tall Flyback Transformers
Feature :
Space efficient size
Core material :
Ferrite
Mount :
Surface Mount
Pin :
12 Pins
Size :
16.30mm*7.4mm*16.8mm
Description

Space efficient size 16.5 mm square less than 7.5 mm tall Flyback Transformers

Feature:

  • Space efficient size: 16.5 mm square less than 7.5 mm tall
  • Operates at 250 kHz with 36 ?72 Volts input
  • 1500 Vrms, one minute isolation between primary and secondary

Part

number

Power

(W)

Inductance

at 0 A

±10% (μH)

Inductance

at Ipk

min (μH)

 DCR max (Ohms)

Leakage

inductance

max (μH)

 Turns ratio Ipk Output
pri sec bias pri/sec pri/bias
Discontinuous mode
POE60D-18L_ 6 75.0 67.5 0.311 0.018 0.575 6.7 1 : 0.063 1 : 0.344 1.0 1.8 V, 3.3 A
POE60D-25L_ 6 80.0 72.0 0.219 0.018 0.388 5.0 1 : 0.083 1 : 0.333 0.95 2.5 V, 2.4 A
POE60D-33L_ 6 85.0 76.5 0.285 0.026 0.530 4.0 1 : 0.083 1 : 0.333 0.90 3.3 V, 1.8 A
POE60D-50L_ 6 90.0 81.0 0.271 0.033 0.529 3.1 1 : 0.143 1 : 0.357 0.85 5.0 V, 1.2 A
POE60D-12L_ 6 95.0 85.5 0.265 0.074 0.484 2.4 1 : 0.333 1 : 0.333 0.80 12.0 V, 0.5 A

Similar Products

POE60D-18L_ POE60D-25L_ POE60D-33L_ POE60D-50L_
POE60D-12L_

Space efficient size 16.5 mm square less than 7.5 mm tall Flyback Transformers

Shape and Dimensions:

Space efficient size 16.5 mm square less than 7.5 mm tall Flyback Transformers

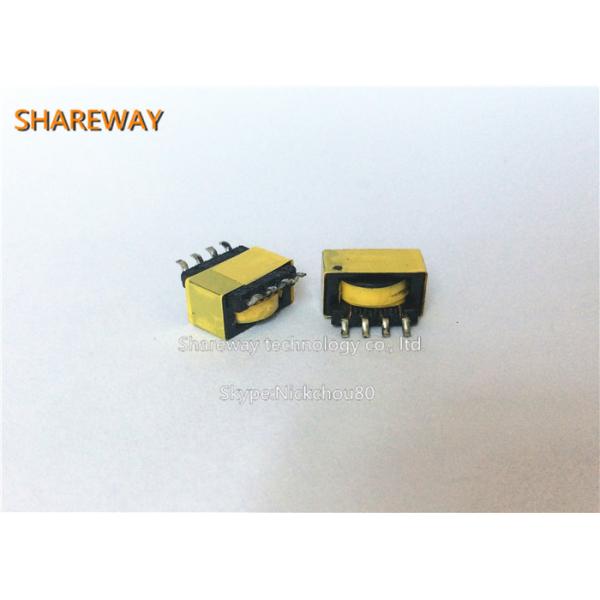

Product picture:

Space efficient size 16.5 mm square less than 7.5 mm tall Flyback Transformers
