Z9280-AL Surface Mount Wideband RF Transformers to analog highspeed
Z9280-AL Surface Mount Wideband RF Transformers to analog highspeed
Specifications
Brand Name :
Shareway
Model Number :
Z9280-AL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Reel
Product name :
Z9280-AL Surface Mount Wideband RF Transformers to analog highspeed
Type :
RF Transformers
Usage :
analog highspeed
Color :
White
Size :
6.1mm*4.83mm*6.35mm
Shield :
Unshielded
Description

Z9280-AL Surface Mount Wideband RF Transformers to analog highspeed

Feature:

• Developed for use with Analog Devices digital to analog highspeed
converters
• 400 V interwinding isolation, 1/4 Watt RF input power
• 250 mA max current rating.

Part

number

Impedance

ratio

pri : sec

3 dB frequency

response

(MHz)

Irms

(mA)

Insertion

loss typ

(dB)

 Pins 1-3 Pins 6-4 Color dot

L min

(μH)

DCR max

(Ohms)

L min

(μH)

DCR max

(Ohms)
Z9280-AL_ 1 : 1 0.250 – 450 250 0.58 9.5 0.075 9.5 0.075 Orange

Z9280-AL Surface Mount Wideband RF Transformers to analog highspeed

Shape and Dimensions:

Z9280-AL Surface Mount Wideband RF Transformers to analog highspeed

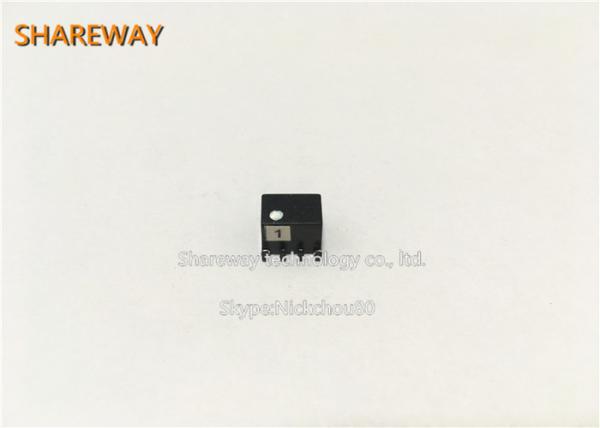

Product picture:

Z9280-AL Surface Mount Wideband RF Transformers to analog highspeed
