Surface mount and through hole versions Wideband Transformers WB1-1SL_/WB1-1L
Surface mount and through hole versions Wideband Transformers WB1-1SL_/WB1-1L
Specifications
Brand Name :
Shareway
Model Number :
WB1-1SL_/WB1-1L
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
5000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Reel ,Tube
Product name :
WB1-1SL_/WB1-1L Surface mount and through hole versions Wideband Transformers
Mount type :
Surface mount and through hole versions
Size :
Smaller size
Weight :
0.38 – 0.40 g
Ambient temperature :
–40°C to +85°C
Samples :
Free Samples
Description

WB1-1SL_/WB1-1L Surface mount and through hole versions Wideband Transformers

Feature:

• Surface mount and through hole versions
• 500 Vrms, 1 minute interwinding isolation, 1/4 Watt RF input power
• 250 mA max current rating.
• For a smaller package size.

Core material Ferrite
Terminations RoHS compliant matte tin over nickel over phos
bronze. Other terminations available at additional cost.
Weight 0.38 – 0.40 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel or tube packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part number

Impedance

ratio

pri : sec

Bandwidth

(MHz)

Insertion

loss max

(dB)

 Pri (pins 4 – 6) Sec (pins 1 – 3)

DC

imbalance

max (mA)
SM TH

L min

(μH)

DCR max

(mOhm)

L min

(μH)

DCR max

(mOhm)
WB1-1SL_ WB1-1L 1 : 1 0.150 – 500 0.70 27 75 27 75 —
WB1-6SL_ WB1-6L 1 : 1 0.100 – 350 0.50 25 100 25 100 —
WB1.18-3SL_ WB1.18-3L 1 : 1.18 0.040 – 300 0.50 90 300 108 330 —
WB1.5-6SL_ WB1.5-6L 1 : 1.5 0.050 – 325 0.26 56 120 84 150 —
WB2-1-2WSL_ WB2-1-2WL 1 : 2 0.080 – 700 1.00 38 100 75 150 —
WB2.5-6SL_ WB2.5-6L 1 : 2.5 0.080 – 225 0.26 30 100 75 130 —
WB4-6SL_ WB4-6L 1 : 4 0.100 – 125 0.50 25 100 100 200 —
WB9-1SL_ WB9-1L 1 : 9 0.125 – 125 0.57 25 100 225 250 —
WB16-1SL_ WB16-1L 1 : 16 0.050 – 100 0.60 56 75 896 330 —
WB36-1SL_ WB36-1L 1 : 36 0.100 – 45 0.50 25 50 900 180 —
WB1-1TSL_ WB1-1TL 1 : 1 0.100 – 375 0.51 25 100 25 100 30
WB1-6TSL_ WB1-6TL 1 : 1 0.050 – 200 0.20 70 150 70 150 18
WB2-1TSL_ WB2-1TL 1 : 2 0.070 – 400 1.00 38 100 75 150 29
WB2.5-6TSL_ WB2.5-6TL 1 : 2.5 0.050 – 125 0.28V 56 120 140 200 13
WB3-1TSL_ WB3-1TL 1 : 3 0.040 – 500 0.40 96 110 270 200 4.0
WB4-1HSL_ WB4-1HL 1 : 4 0.100 – 500 0.50 25 120 100 160 15
WB4-6TSL_ WB4-6TL 1 : 4 0.050 – 200 0.50 43 120 172 160 5.0
WB5-1TSL_ WB5-1TL 1 : 5 0.050 – 400 0.30 48 220 240 500 13
WB8-1TSL_ WB8-1TL 1 : 8 0.150 – 400 0.76 18 100 144 270 17
WB13-1TSL_ WB13-1TL 1 : 13 0.150 – 125 0.72 17 90 221 200 10
WB16-6TSL_ WB16-6TL 1 : 16 0.150 – 125 0.60 56 75 896 330 25
WBT1-6SL_ WBT1-6L 1 : 1 0.040 – 200 0.25 70 150 70 150 19
WBT1.5-1SL_ WBT1.5-1L 1 : 1.5 0.040 – 350 0.30 60 150 90 180 19
WBT2.5-6SL_ WBT2.5-6L 1 : 2.5 0.050 – 100 0.26 70 150 175 200 11
WBT4-1SL_ WBT4-1L 1 : 3 0.040 – 150 0.26 45 120 135v 160 13
WBT4-1ASL_ WBT4-1AL 1 : 4 0.040 – 350 0.40 96 110 384 220 3.5
WBT16-1SL_ WBT16-1L 1 : 16 0.100 – 100 0.50 25 100 400 300 7.5
WBT25-1SL_ WBT25-1L 1 : 25 0.100 – 65 0.50 25 100 625 350 6.0

WB1-1SL_/WB1-1L Surface mount and through hole versions Wideband Transformers

Shape and Dimensions:

Surface mount and through hole versions Wideband Transformers WB1-1SL_/WB1-1L

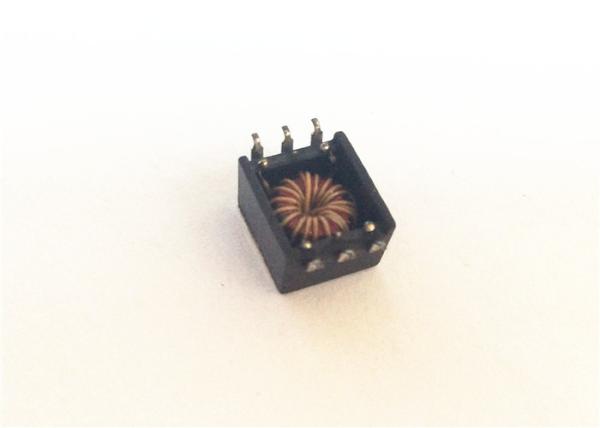

Product picture:

Surface mount and through hole versions Wideband Transformers WB1-1SL_/WB1-1L
