matte tin over nickel over phos bronze SMD Power Inductor MSS5131-222ML_
matte tin over nickel over phos bronze SMD Power Inductor MSS5131-222ML_
Specifications
Brand Name :
Shareway
Model Number :
MSS5131-222ML_
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
5000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
600PCS/REEL
Product name :
matte tin over nickel over phos bronze SMD inductor MSS5131-222ML_
Inductance :
2.2 - 390 uH
DCR :
0.020 - 1.80 Ohms
Weight :
0.20 – 0.24 g
Ambient temperature :
–40°C to +85°C
Maximum part temperature :
+125°C
Description

matte tin over nickel over phos bronze SMD inductor MSS5131-222ML_

Description:

• 5.1 × 5.1 mm footprint; 3.1mm high shielded inductors
• Low DCR and excellent current handling

Core material Ferrite

Terminations RoHS compliant matte tin over nickel over phos
bronze (current production) or gold over nickel over phos bronze (prior
production). Other terminations available at additional cost.
Weight 0.20 – 0.24 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part number

Inductance

±20% (μH)

DCR

max

(Ohms)

SRF

typ

(MHz)

 Isat (A) Irms (A)6

10%

drop

20%

drop

30%

drop

20°C

rise

40°C

rise
MSS5131-222ML_ 2.2 0.020 65.0 1.76 2.08 2.30 2.00 3.30
MSS5131-332ML_ 3.3 0.028 60.0 1.33 1.58 1.73 1.60 2.90
MSS5131-472ML_ 4.7 0.038 48.0 1.08 1.32 1.42 1.40 2.50
MSS5131-562ML_ 5.6 0.042 44.0 1.00 1.20 1.30 1.30 2.30
MSS5131-682ML_ 6.8 0.050 42.0 0.98 1.14 1.24 1.20 2.16
MSS5131-822ML_ 8.2 0.058 40.0 0.90 1.04 1.18 1.10 2.00
MSS5131-103ML_ 10 0.070 38.0 0.85 0.98 1.13 1.00 1.90
MSS5131-123ML_ 12 0.080 35.0 0.72 0.85 0.94 0.97 1.60
MSS5131-153ML_ 15 0.100 32.0 0.67 0.78 0.86 0.94 1.50
MSS5131-183ML_ 18 0.120 26.0 0.61 0.72 0.79 0.89 1.40
MSS5131-223ML_ 22 0.145 22.0 0.54 0.64 0.70 0.87 1.30
MSS5131-273ML_ 27 0.161 19.0 0.48 0.56 0.62 0.85 1.20
MSS5131-333ML_ 33 0.200 18.0 0.44 0.52 0.58 0.80 1.10
MSS5131-393ML_ 39 0.215 17.0 0.42 0.50 0.55 0.74 1.00
MSS5131-473ML_ 47 0.270 16.0 0.38 0.46 0.51 0.71 0.95
MSS5131-563ML_ 56 0.280 15.0 0.34 0.42 0.47 0.70 0.90
MSS5131-683ML_ 68 0.368 12.5 0.31 0.38 0.42 0.66 0.85
MSS5131-823ML_ 82 0.420 12.0 0.27 0.32 0.35 0.62 0.80
MSS5131-104ML_ 100 0.580 11.5 0.26 0.30 0.33 0.55 0.69
MSS5131-124ML_ 120 0.610 11.0 0.23 0.27 0.30 0.51 0.62
MSS5131-154ML_ 150 0.820 10.0 0.21 0.26 0.28 0.47 0.58
MSS5131-184ML_ 180 1.00 9.0 0.19 0.23 0.25 0.43 0.54
MSS5131-224ML_ 220 1.10 8.0 0.18 0.21 0.23 0.39 0.50
MSS5131-274ML_ 270 1.43 7.5 0.15 0.18 0.20 0.35 0.45
MSS5131-334ML_ 330 1.58 6.8 0.13 0.17 0.19 0.32 0.42
MSS5131-394ML_ 390 1.80 5.4 0.12 0.15 0.16 0.30 0.38

matte tin over nickel over phos bronze SMD inductor MSS5131-222ML_

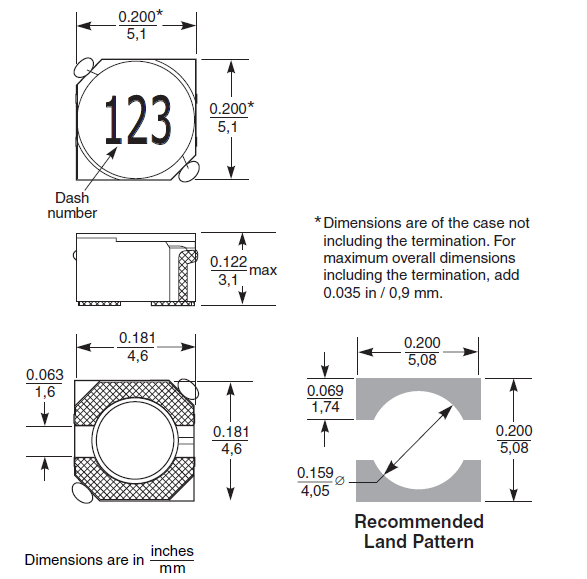

Shape and Dimensions:

matte tin over nickel over phos bronze SMD Power Inductor MSS5131-222ML_
