Excellent current handling High Temp Power Inductors MSS1038T-821NL_
Excellent current handling High Temp Power Inductors MSS1038T-821NL_
Specifications
Brand Name :
Shareway
Model Number :
MSS1038T-821NL_
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
5000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
250pcs/reel
Product name :
Excellent current handling High Temp Power Inductors MSS1038T-821NL_
Type :
High Temp Power Inductors
Feature :
Excellent current handling
Application :
high temperature applications
Size :
10.0*10.0*3.8mm
Weight :
1.5 g
Description

Excellent current handling High Temp Power Inductors MSS1038T-821NL_

Description:

• Designed for high temperature applications; ambient temperature
up to 165°C.
• AEC-Q200 qualified
• Very low DCR and excellent current handling

Core material Ferrite

Terminations RoHS compliant matte tin over nickel over copper.
Other terminations available at additional cost.
Weight: 1.5 g
Ambient temperature –40°C to +125°C with (40°C rise) Irms current.
Maximum part temperature +165°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part number

Inductance

(μH)

DCR

max

SRF

typ

(MHz)

 Isat (A) Irms (A)

10%

drop

20%

drop

30%

drop

20°C

rise

40°C

rise
MSS1038T-821NL_ 0.82 ±30% 6.0 138 9.00 11.16 12.10 7.30 10.0
MSS1038T-152NL_ 1.5 ±30% 8.1 81 7.40 9.48 11.06 5.60 7.85
MSS1038T-252NL_ 2.5 ±30% 10 61 5.70 7.62 9.26 4.65 6.65
MSS1038T-382NL_ 3.8 ±30% 13 45 4.94 6.50 7.64 4.25 6.05
MSS1038T-522NL_ 5.2 ±30% 22 37 3.96 5.28 6.14 3.60 5.10
MSS1038T-702NL_ 7.0 ±30% 27 33 3.62 4.74 5.60 3.10 4.35
MSS1038T-103NL_ 10 ±30% 35 29 3.04 4.74 4.52 2.90 4.05
MSS1038T-123ML_ 12 ±20% 41 25 2.72 3.90 4.04 2.85 4.00
MSS1038T-153ML_ 15 ±20% 50 21 2.84 3.48 3.86 2.70 3.80
MSS1038T-183ML_ 18 ±20% 65 18 2.44 3.44 3.52 2.25 3.35
MSS1038T-223ML_ 22 ±20% 73 15 2.34 3.10 3.30 1.90 2.85
MSS1038T-273ML_ 27 ±20% 89 15 1.98 2.94 2.84 1.65 2.35
MSS1038T-333ML_ 33 ±20% 93 13 1.84 2.48 2.62 1.60 2.30
MSS1038T-393ML_ 39 ±20% 112 12 1.60 2.34 2.34 1.55 2.25
MSS1038T-473ML_ 47 ±20% 128 11 1.60 2.04 2.22 1.45 2.20
MSS1038T-563ML_ 56 ±20% 180 11 1.48 1.84 2.04 1.40 1.85
MSS1038T-683ML_ 68 ±20% 213 10 1.32 1.62 1.82 1.15 1.75
MSS1038T-823ML_ 82 ±20% 261 8 1.12 1.42 1.60 1.09 1.50
MSS1038T-104ML_ 100 ±20% 304 6 1.02 1.30 1.46 1.05 1.45
MSS1038T-124KL_ 120 ±10% 380 6 0.95 1.18 1.34 0.85 1.25
MSS1038T-154KL_ 150 ±10% 506 6 0.89 1.10 1.22 0.80 1.20
MSS1038T-184KL_ 180 ±10% 582 5 0.89 1.02 1.16 0.71 0.98
MSS1038T-224KL_ 220 ±10% 756 5 0.72 0.88 0.99 0.70 0.97
MSS1038T-274KL_ 270 ±10% 926 4 0.66 0.81 0.91 0.65 0.86
MSS1038T-334KL_ 330 ±10% 1090 4 0.73 0.73 0.82 0.50 0.69
MSS1038T-394KL_ 390 ±10% 1141 4 0.51 0.65 0.74 0.49 0.65
MSS1038T-474KL_ 470 ±10% 1243 3 0.50 0.62 0.70 0.45 0.63
MSS1038T-564KL_ 560 ±10% 1696 3 0.43 0.53 0.56 0.43 0.59
MSS1038T-684KL_ 680 ±10% 1926 3 0.38 0.48 0.52 0.36 0.50
MSS1038T-824KL_ 820 ±10% 2596 3 0.37 0.46 0.49 0.34 0.47
MSS1038T-105KL_ 1000 ±10% 2853 3 0.35 0.43 0.46 0.33 0.45

Excellent current handling High Temp Power Inductors MSS1038T-821NL_

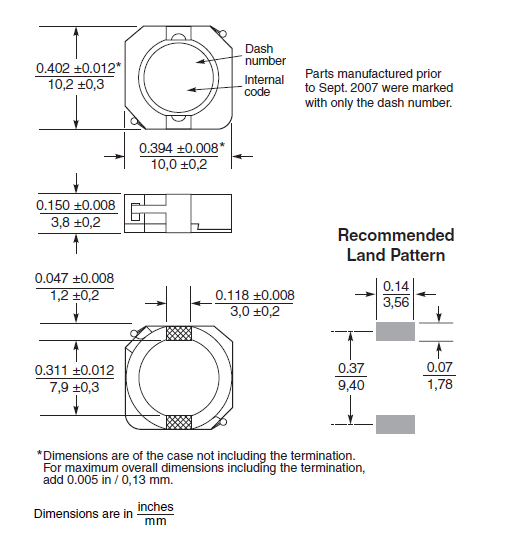

Shape and Dimensions:

Excellent current handling High Temp Power Inductors MSS1038T-821NL_
