Electronic Pin-Typ Double Wound Transformer PA1135NL Vertical Mounted
Electronic Pin-Typ Double Wound Transformer PA1135NL Vertical Mounted
Specifications
Brand Name :
Shareway
Model Number :
PA1135NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray in Carton
Product name :
PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer
Type :
Small Signal Transformer
Pin :
Pin-typ
Installation :
Vertical mounted
Magnet properties :
Mn-Zn
Package :
Common
Description

PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer

Feature:

  • Power Range: up to 30W
  • Height: 11.45mm Max
  • Footprint: 15.24mm x 13.1mm Max
  • Toplogy: Forward and Flyback

PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer

Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C
Product name Pri. Inductance (3-4) 253.4 μH ±10%
PA1253NL Lk. Inductance (3-4) with
(8, 7, 6, 5) shorted		 12 μH MAX
DCR (3-4) 420 mΩ MAX
(2-1) 335 mΩ MAX
(5-6) 9.5 mΩ MAX
(7-8) 7.2 mΩ MAX
Hi-Pot Pri-Sec 1500Vrms
K1 Factor 4671.8
PA1277NL Pri. Inductance (3-4) 20.4μH ±10%
Lk. Inductance (3-4) with
(10, 9, 8, 7) shorted		 1.5 μH MAX
DCR (3-4) 80 mΩ MAX
(6, 5-8, 7) 7.5 mΩ MAX
(2-1) 150 mΩ MAX
Hi-Pot Pri-Sec 1500Vrms
K1 Factor 1002.9
PA1282NL Pri. Inductance (3-4) 155 μH ±10%
Lk. Inductance (3-4) with
(8, 7, 6, 5) shorted		 5 μH MAX
DCR (3-4) 530 mΩ MAX
(6, 5-8, 7) 31 mΩ MAX
(2-1) 900 mΩ MAX
Hi-Pot Pri-Sec 1500Vrms
K1 Factor 3117.5
PA1283NL Pri. Inductance (3-4) 155 μH ±10%
Lk. Inductance (3-4) with
(8, 7, 6, 5) shorted		 5 μH MAX
DCR (3-4) 570 mΩ MAX
(6, 5-8, 7) 40 mΩ MAX
(2-1) 1000 mΩ MAX
Hi-Pot Pri-Sec 1500 Vrms
K1 Factor 3117.5

PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer

Shape and Dimensions:

Electronic Pin-Typ Double Wound Transformer PA1135NL Vertical Mounted

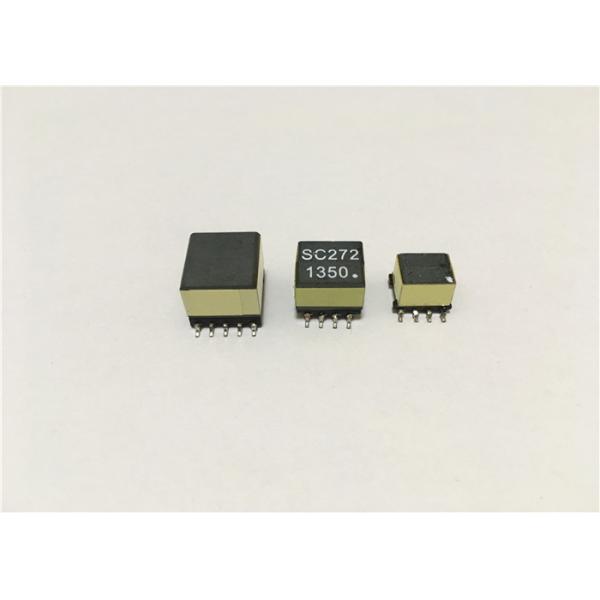

Product Picture:

Electronic Pin-Typ Double Wound Transformer PA1135NL Vertical Mounted

PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
