33471C Toroidal Power Inductor Air Core Choke Copper Wire Magnetic Ring
33471C Toroidal Power Inductor Air Core Choke Copper Wire Magnetic Ring
33471C Toroidal Power Inductor Air Core Choke Copper Wire Magnetic Ring
33471C Toroidal Power Inductor Air Core Choke Copper Wire Magnetic Ring
Specifications
Brand Name :
Shareway
Model Number :
33471C
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray, Tape or Reel
Product name :
33471C Toroidal Coil Common Mode Choke Toroidal Power Inductors
Type :
Power ferrite air core inductor coil with best service 039-125
Material :
Copper wire, magnetic ring
Application :
Electronics
Shape :
Toroidal
Tolerance :
10%, 20%
Description

33471C Toroidal Coil Common Mode Choke Toroidal Power Inductors

Description:

The 3300 series is a range of through-hole power inductors. Due to the toroidal construction, they
exhibit a very low EMI as stray fl ux is kept to a minimum. Typical applications include switching
regulators, and power line fi ltering.

Feature:

  • RoHS compliant
  • Toroidal construction
  • Up to 7.6A IDC
  • Inductance range from 10μH to 1.0mH
  • Low EMI
  • UL 94V-0 packaging materials
  • Low DC resistance

Part number Inductance, L DC Current2 DC Resistance Q @ f MHz SRF Package
Weight
±15% Max. Max. Nom. Typ. Typ.
μH A mΩ Q f MHz g
33100C 10 7.60 20 3.4 1.0 68 20.8
33150C 15 6.20 27 3.3 1.0 49 21.3
33220C 22 5.10 33 3.4 1.0 37 21.5
33330C 33 4.20 40 3.5 1.0 24 22.0
33470C 47 3.50 48 3.4 1.0 17 22.5
33680C 68 2.90 57 3.5 1.0 16 22.9
33101C 100 2.40 70 3.9 0.8 9.7 23.7
33151C 150 2.00 84 3.8 0.8 7.2 24.9
33221C 220 1.60 102 3.2 0.8 2.0 26.1
33331C 330 1.30 126 3.4 0.8 1.9 27.8
33471C 470 1.10 152 2.6 0.8 1.4 29.5
33681C 680 0.92 183 0.64 0.8 0.9 31.5
33102C 1000 0.76 221 0.85 0.8 0.7 34.0

33471C Toroidal Coil Common Mode Choke Toroidal Power Inductors Shape and

Dimensions:33471C Toroidal Power Inductor Air Core Choke Copper Wire Magnetic Ring

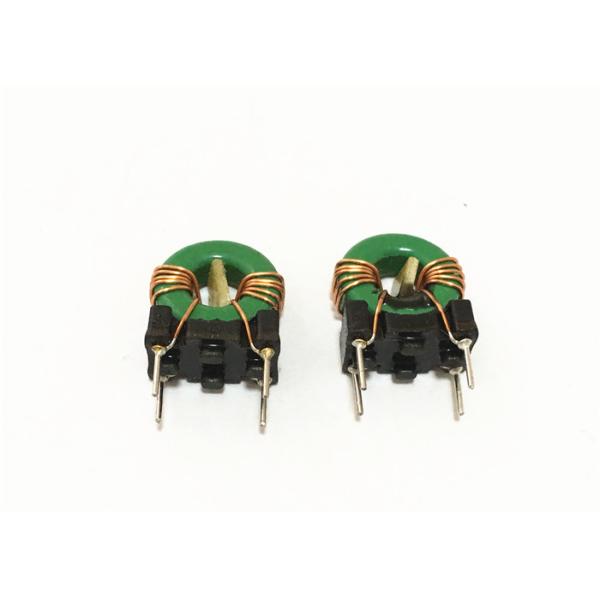

Product Picture:

33471C Toroidal Power Inductor Air Core Choke Copper Wire Magnetic Ring

33471C Toroidal Coil Common Mode Choke Toroidal Power Inductors

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
