SMT Ethernet Lan Transformer H2009NL UL RoHS Certified For Power
SMT Ethernet Lan Transformer H2009NL UL RoHS Certified For Power
SMT Ethernet Lan Transformer H2009NL UL RoHS Certified For Power
SMT Ethernet Lan Transformer H2009NL UL RoHS Certified For Power
Specifications
Brand Name :
Shareway
Model Number :
H2009NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tube and Carton
Product name :
H2009NL SMT Ethernet Lan Transformer Specially Designed For Power
Application :
Power
Type :
SMT
Usage :
Pulse
Condition :
100%new
Sample :
5pcs Free samples
Description

H2009NL SMT Ethernet Lan Transformer Specially Designed For Power

Product Description:

POWER OVER ETHERNET (PoE) MAGNETICS 10/100BASE-TX VoIP Magnetics Modules

Features:

  • RoHS peak reflow temperature rating 245°C
  • IEEE 802.3af / ANSI X3.263 compliant performance
  • Designed for IP phone or switch applications

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

Part
Number		 Ports Insertion
Loss
(dB MAX)		 Return Loss
(dB MIN @ 100 Ω)		 Differential to Common
Mode Rejection
(dB MIN		 Cross Talk
(dB MIN)		 Hipot
(Vrms MIN))

DC
Resistance
Balance

< (%)
1-100 MHz 1-30 MHz 40 MHz 50 MHz 60-80 MHz 30 MHz 60 MHz 100 MHz 30 MHz 60 MHz 100 MHz
H1187NL 1 -1.2 -16 -14 -13 -12 -43 -37 -33 -45 -40 -35 1500 —
H1197NL 1 -1.2 -16 -14 -13 -12 -43 -37 -33 -45 -40 -35 1500 —
H2019NL 1 -1.2 -16 -14 -13 -12 -43 -37 -33 -45 -40 -35 1500 3.5
H2005ANL 2 -1.2 -16 -14 -13 -12 -50 -43 -35 -43 -37 -33 1500 3.5
H2006ANL 2 -1.2 -16 -14 -13 -12 -43 -37 -33 -43 -37 -31 1500 3.5
H2008NL 2 -1.2 -16 -14 -13 -12 -40 -35 -30 -43 -37 -33 1500 3.5
H2009NL 2 -1.1 -16 -14 -13 -12 -43 -37 -33 -43 -37 -33 1500 3.5
H2014NL 4 -1.2 -16 -14 -13 -12 -43 -37 -33 -45 -40 -35 1500 3.5
H2017NL 4 -1.2 -16 -14 -13 -12 -43 -37 -33 -45 -40 -35 1500 3.5
HX2019NL 1 -1.4 -16 -14 -13 -12 -43 -37 -33 -45 -40 -35 1500 3.5

1. Extended operating temperature (-40°C to +85°C)
2. MSL (Moisture Sensitivity Level): a = 1, b = 2, c = 3, d = 4, e = 5

H2009NL SMT Ethernet Lan Transformer Specially Designed For Power

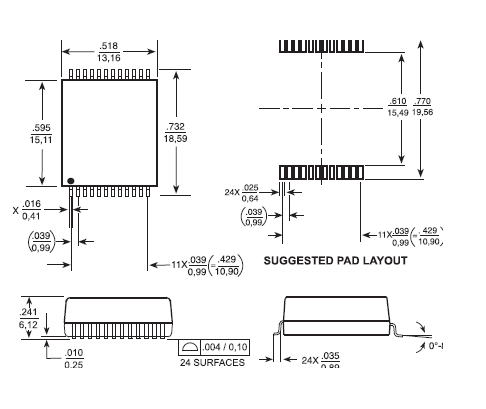

Shape and Dimensions:

SMT Ethernet Lan Transformer H2009NL UL RoHS Certified For Power

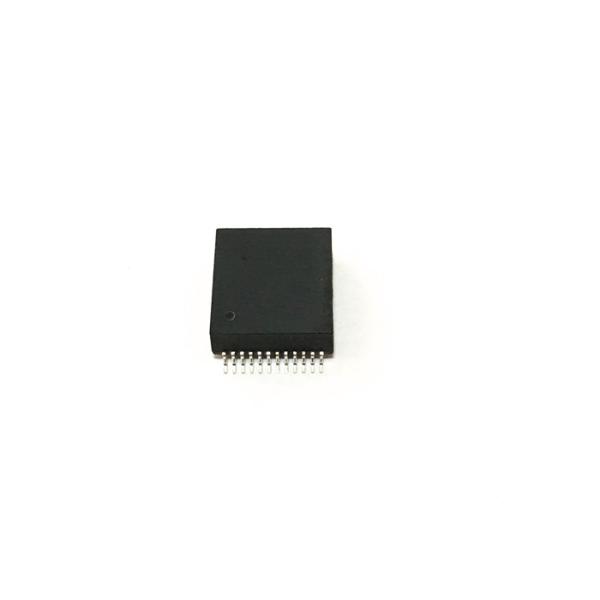

Product Picture:

SMT Ethernet Lan Transformer H2009NL UL RoHS Certified For Power

H2009NL SMT Ethernet Lan Transformer Specially Designed For Power

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
