Set Top Box Magnetic RJ45 Jack , J0C-0003NL RJ45 Surface Mount Jack
Set Top Box Magnetic RJ45 Jack , J0C-0003NL RJ45 Surface Mount Jack
Specifications
Brand Name :
Shareway
Model Number :
J0C-0003NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
1000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray, Tape or Reel
Product name :
J0C-0003NL Surface Mount Magnetic RJ45 Jack For the Set Top Box
Part number :
J0C-0003NL
Type :
Surface Mount
Usage :
Set Top Box
LED :
Yellow, green, red, blue option
Material :
Copper Alloy
Description

J0C-0003NL Surface Mount Magnetic RJ45 Jack For the Set Top Box

J0C-0003NL Product Description:

  • 100 Base-TX (Fast Ethernet) RJ45 Jack
  • surface mount RJ45 Jack
  • single port (1x1) RJ45 Jack
  • Tab-UP/DOWN RJ45 Jack
  • with or without LEDS Integrated Magnetics Connector
  • designed to support applications such as: Set Top Box and Network Interface Cars (NIC).


Features and Benefits:

  • RoHS peak wave reflow temperature rating 245°C
  • J0C SMT product, reduced size and low cost alternative to JV series
  • Meets IEEE 802.3 specification
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement


J0C-0003NL Surface Mount Magnetic RJ45 Jack For the Set Top Box

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C
RoHS
Compliant
Part Number
(Number of Ports)		Turns
Ratios

Tab
Option
up/down

LEDs
L/R

Insertion
Loss
(dB TYP)

Return Loss
(dB TYP)
100Ω (±15Ω)

Crosstalk
(dB MIN)

Common Mode
Rejection
(dB TYP)
TXRX1-65
MHz		1-10
MHz		10-30
MHz		30-60
MHz		30-60
MHz		60-100
MHz		1-50
MHz		50-150
MHz		@60Hz
1 MIN
J0C-0003NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
J0C-0004NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
J0C-0005NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
J0C-0006NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
JV006I21NL1CT:11CT:1DownNo-1.0-20-16-12-40-35-30-30-20
JV011I21NL1CT:11CT:1DownNo-1.0-20-16-12-40-35-30-30-20
JV026I21NL1CT:11CT:1DownNo-1.0-20-16-12-40-35-30-30-20
J3011G21DNL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20
J3026G01DNL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20
J3026G21DNL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20
JX30-0005NL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20



J0C-0003NL Surface Mount Magnetic RJ45 Jack For the Set Top Box

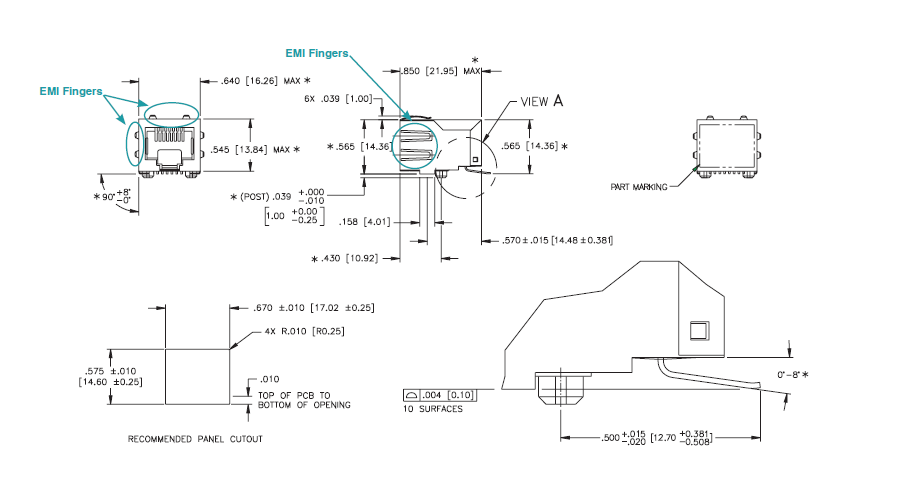

Set Top Box Magnetic RJ45 Jack , J0C-0003NL RJ45 Surface Mount Jack

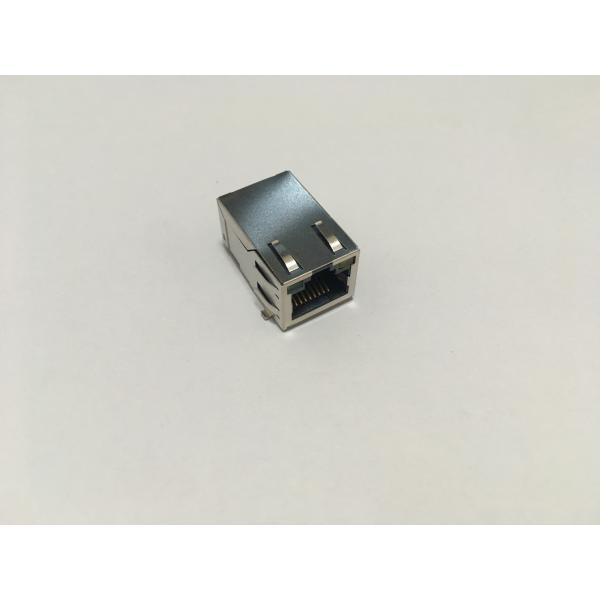

Set Top Box Magnetic RJ45 Jack , J0C-0003NL RJ45 Surface Mount Jack


J0C-0003NL Surface Mount Magnetic RJ45 Jack For the Set Top Box
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
