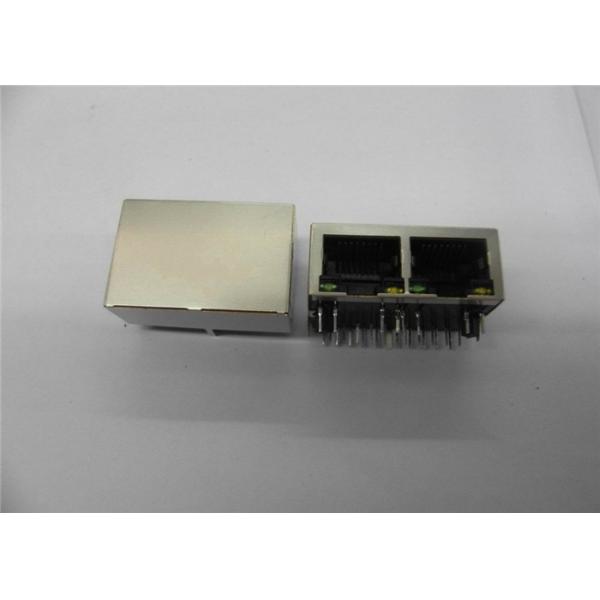

RJ45 100base TX Connector Tab Up JG0-0031NL Meets IEEE 802.3 Specification
RJ45 100base TX Connector Tab Up JG0-0031NL Meets IEEE 802.3 Specification
Specifications
Brand Name :
Shareway
Model Number :
JG0-0031NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
1000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray
Product name :
JG0-0031NL PoE RJ45 Connector Meets IEEE 802.3 specification
POE :
PoE applications
Port :
1*2 ports
Tab :
Up
LED :
G/Y , G
Speed :
10/100Base-T
Description

JG0-0031NL PoE RJ45 Connector Meets IEEE 802.3 specification

Description:

100 Base-TX (Fast Ethernet) RJ45 1x2 Integrated Connector Module (ICM) with LEDs -
Designed to support PoE applications.

Features and Benefits:

  • RoHS peak wave solder temperature rating 260°C
  • Unique design ensures a separation of >2.0mm between Power, Signal and Ground pins.
  • Compact design includes integrated magnetics, bi-color LEDs
  • 350μH minimum OCL with 8mA bias current
  • Meets IEEE 802.3 specification

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C
RoHS
Compliant
Part Number		 Number
of Ports		 LEDs
L/R		 Insertion
Loss TX/RX
(dB TYP)		 Return Loss
(dB TYP)
100Ω (± 15 Ω)		 Crosstalk
(dB TYP)		 Common Mode
Rejection
(dB TYP)		 Hipot
(Vrms MIN)
1-100
MHz		 1-10
MHz		 30
MHz		 60-80
MHz		 1-10
MHz		 30-60
MHz		 60-100
MHz		 1-125
MHz		 125-500
MHz		 @ 60Hz
1 MIN
JG0-0031NL 1x2 Y-G/G -0.15 -20 -16 -12 -40 -35 -30 -20 -20 1500
JG0-0032NL 1x4

JG0-0031NL PoE RJ45 Connector Meets IEEE 802.3 specification

RJ45 100base TX Connector Tab Up JG0-0031NL Meets IEEE 802.3 Specification

RJ45 100base TX Connector Tab Up JG0-0031NL Meets IEEE 802.3 Specification

JG0-0031NL PoE RJ45 Connector Meets IEEE 802.3 specification

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
