2*4 Port RJ45 Female Connector J20-0235NL Low Profile With PCB Board
2*4 Port RJ45 Female Connector J20-0235NL Low Profile With PCB Board
Specifications
Brand Name :
Shareway
Model Number :
J20-0235NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
1000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray
Product name :
J20-0235NL 2*4 Port Female PoE RJ45 Connector With PCB board in Low Profile
Port :
2*4 ports
Gender :
Female, Receptacle
Plating :
Gold or Tin Plate, OEM
Base :
10/100/1000M
Application :
SDH, PDH, IP Phone, xDSL modem
Description

J20-0235NL 2*4 Port Female PoE RJ45 Connector With PCB board in Low Profile

J20-0235NL Features:
1. RoHS COMPLIANT
2. PLASTIC HOUSING : THERMOPLASTIC MATERIAL WITH FLAMMABILITY RATING UL 94V-0 OR
BETTER
3. CONTACTS PLATING: 50 MICROINCHES GOLD PLATING
4. CONTACT BASE MATERIAL: PHOSPHOR BRONZE
5. UNDER PLAATING : 30 - 50u INCHES NICKEL
6. SOLDER TAIL PLATING: 200 - 500 UINCHES 100% TIN, MATTE FINISH
7. METAL SHIELD: NICKEL PLATING ON COPPER ALLOY
8. JACK CAVITY CONFORMS TO FCC PART 68 SUBPART F.
9. PCB PLATING: HASL
10. STORAGE TEMPERATURE: - 20℃ TO +125℃
11. COMPLIANCE TO J - STD:
A. J - STD -002: SOLDERABILITY AT 245℃ DIP AND LOOK TEST
B. J - STD -020: LEVEL 1, NO MOISTURE SENSITIVE
C. J - STD -075: W2, 270℃ MAXIMUM THROUGH WAVE SOLDER
ELECTRICAL CHARACTERISTICS AT +25℃ UNLESS OTHER SPECIFIED

(FOR REFERENCE ONLY. USED FOR CUSTOMER INFORMATION.)

PARAMETER SPECIFICATIONS
OPERATING TEMP 0℃ - 70℃
TURNS RATIO 1 .00 ± 2%
POLARITY PER SCHEMATIC
INSERTION LOSS 100 KHz 1 -125 KHz
-1.2 dB MAX -0.2 - 0.002*f 1.4 dB MAX
RETURN LOSS(Z OUT = 100 OHM ± 5%) .1-30 MHz 30 -60 MHz 40- 100 MHz
- 16 dB MIN -10+20*LOG10(f/60 MHz) dB MIN -10+20*LOG10(f/80 MHz) dB MIN
INDUCTANCE (OCL) (MEDIA SIDE,0℃ - 70℃) 350 uH MIN (MEASURED AT 100 KHz,100 mVRMS AND WITH 8mA DC BIAS)
CROSSTALK, ADJACENT CHANNELS 1 MHz 10 -100 MHz
- 50 dB MIN -52+22*LOG10(f/80 MHz) dB MIN
COMMON MODE REJECTION RATIO 2 MHz 30 -200MHz
- 50 dB MIN -15+20*LOG10(f/80 MHz) dB MIN
INPUT - OUTPUT ISOLATION 2250 VDC MINMUM FOR 60 SECONDS

J20-0235NL 2*4 Port Female PoE RJ45 Connector With PCB board in Low Profile

2*4 Port RJ45 Female Connector J20-0235NL Low Profile With PCB Board

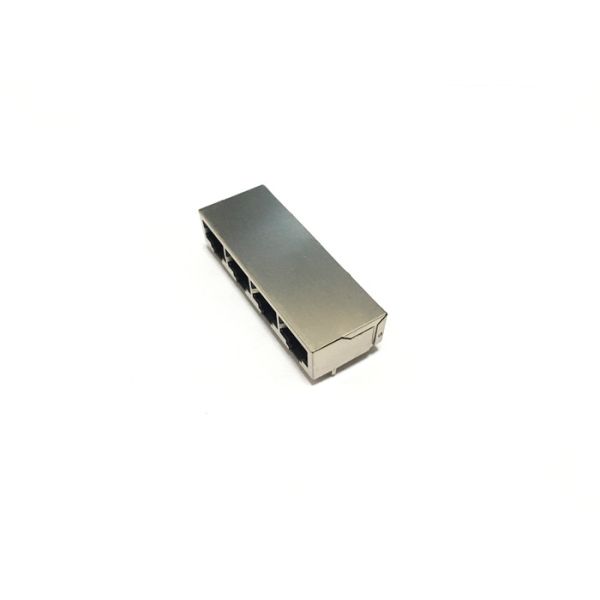

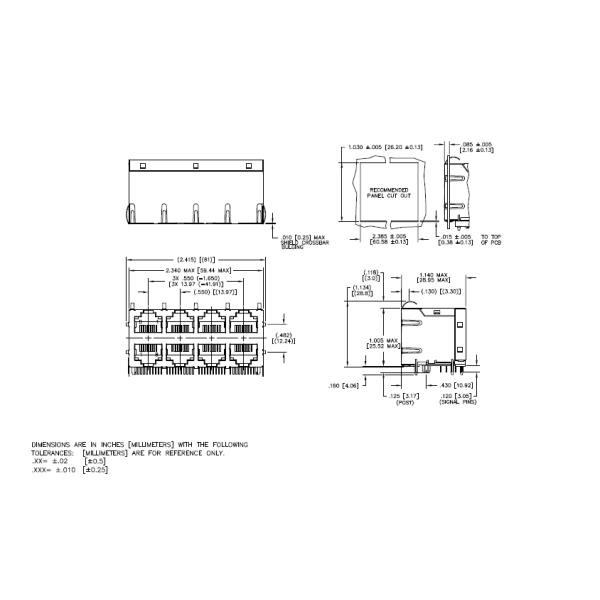

J20-0235NL RJ45 JACK PICTURE:2*4 Port RJ45 Female Connector J20-0235NL Low Profile With PCB Board

J20-0235NL 2*4 Port Female PoE RJ45 Connector With PCB board in Low Profile

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
