1000Base-T PoE RJ45 Connector , J1L-0103NL POE RJ45 Jack Single Port
1000Base-T PoE RJ45 Connector , J1L-0103NL POE RJ45 Jack Single Port
Specifications
Brand Name :
Shareway
Model Number :
J1L-0103NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
1000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
60pcs/tray,1920pcs/carton
Product name :
J1L-0103NL 1000Base-T PoE RJ45 Connector With UL CE Approved
Port :
Single /1*1port
Speed :
10/100/1000Base-T
Size :
26.6mm*17.58mm*11.3mm
Operating temperature :
0℃ - 70℃
Storage temperature :
- 20℃ TO +125℃
Application :
10/100 /POE/POE+
Description

J1L-0103NL 1000Base-T PoE RJ45 Connector With UL CE Approved

J1L-0103NL PRODUCT DETAILS:
1. RoHS CERTIFICATION
2. PLASTIC HOUSING : THERMOPLASTIC MATERIAL WITH FLAMMABILITY RATING UL 94V-0 OR
BETTER.
3. CONTACT BASE MATERIAL: COPPER ALLOY, .0140 ±.0005 THICK.
4. CONTACTS UNDERPLATE : 30 -50 MICROINCHES HALF HARD DUCTILE NICKEL.
5. CONTACT PLATING : 50 MICRO - INCH GOLD PLATING.
6. SOLDER TAIL PLATING MATERIAL: 200 - 500 u INCHES 100% TIN ,MATTE FINISH.
7. METAL SHIELD: NICKEL PLATING ON COPPER ALLOY.
8. JACK CAVITY CONFORMS TO FCC RULES AND REGULATIONS PART 68 SUBPART.
9. PCB PLATING: ENIG
10. SOLDERABILITY : CONFORMS TO ANSI/J - STD - 002.
IPC/ EIA J - STD -003A.
11. OPERATING TEMPERATURE : 0℃ - 70℃
12. STORAGE TEMPERATURE:-20℃ TO +125℃
13. JEDEC MOISTURE: LEVEL 1.
14. REVISION : MX1, MX2,....... ARE PRELIMINARY.
ELECTRICAL CHARACTERISTICS AT +25℃ UNLESS OTHER SPECIFIED
PARAMETER SPECIFICATIONS
INSERTION LOSS 100 KHz 1 -100 KHz 125KHz
-1.2 dB MAX -0.2 - 0.002*f 1.4 dB MAX -3.0 dB MAX
RETURN LOSS(Z OUT = 100 OHM ± 5%) .1-4 MHz 40- 100 MHz
- 16 dB MIN -10+20*LOG10(f/80 MHz) dB MIN
INDUCTANCE (OCL) (MEDIA SIDE,0℃ - 70℃) 350 uH MIN (MEASURED AT 100 KHz,100 mVRMS AND WITH 8mA DC BIAS)
CROSSTALK, ADJACENT CHANNELS 1 MHz 10 -100 MHz
- 50 dB MIN -52+22*LOG10(f/80 MHz) dB MIN
COMMON MODE REJECTION RATIO 2 MHz 30 -200MHz
- 50 dB MIN -15+20*LOG10(f/80 MHz) dB MIN
INPUT - OUTPUT ISOLATION 2250 VDC MINMUM FOR 60 SECONDS

J1L-0103NL 1000Base-T PoE RJ45 Connector With UL CE Approved

EMMITTED COLOR GREEN
WAVELENGTH (nM) 565
POWER DISSIPATION (Pd) 105 mW MAX
DC FORWARD CURRENT 25 mA MAX
FORWARD VOLTAGE (VF) @20 mA 2.2V TYP

J1L-0103NL 1000Base-T PoE RJ45 Connector With UL CE Approved

1000Base-T PoE RJ45 Connector , J1L-0103NL POE RJ45 Jack Single Port

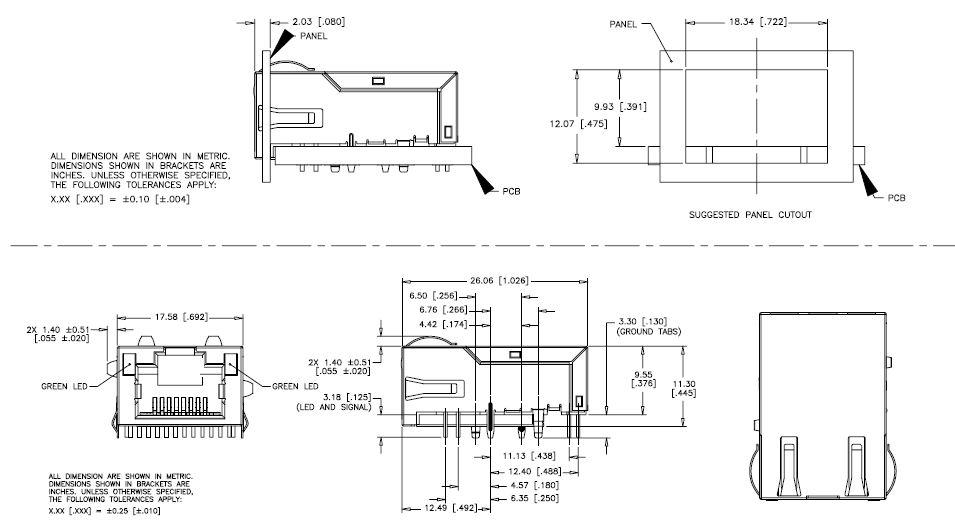

J1L-0103NL PRODUCT PICTURE:

1000Base-T PoE RJ45 Connector , J1L-0103NL POE RJ45 Jack Single Port

J1L-0103NL 1000Base-T PoE RJ45 Connector With UL CE Approved

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
