EP7 Miniature Flyback Transformer DC/DC Converters EP-581SG 13.3*10.0*9.0mm Size
EP7 Miniature Flyback Transformer DC/DC Converters EP-581SG 13.3*10.0*9.0mm Size
Specifications
Brand Name :
Shareway
Model Number :
EP-581SG
Certification :
RoHS,ISO9001-2001
Place of Origin :
Guangdong,shenzhen
MOQ :
500/1000
Price :
Supportive
Payment Terms :
TT,Paypal,West Union
Supply Ability :
1kk-pcs/month
Delivery Time :
Stock Or 3 weeks
Packaging Details :
Reel/Tray
Product name :
13.3*10.0*9.0mm EP7 Transformer for fly-back DC/DC converters EP-581SG
Size :
13.3*10.0*9.0mm
Type :
EP7 Transformer
Application :
Fly-back DC/DC converters
Turns Ratio :
1:1
HI-POT :
1500 Vrms
Description

13.3*10.0*9.0mm EP7 Transformer for fly-back DC/DC converters EP-581SG

POWER TRANSFORMERS:

  • RoHS Compliant.
  • Surface Mount Device.
  • Operating temperature range (Including self temperature rise): -40 ℃ to +125℃.

Electrical Specifications @25 ℃
Part
Number		 Turns Ratio(±3%) OCL(uH±10%)
@10KHz,0.1V		 LK(uH max)
@100KHz,0.1V		 DCR
(mΩ max)		 HI-POT (Vrms)
1-2:2-3 1-3:6-4 1-3 1-3(short pin4+6) 1-3 6-4 Pri-Sec
EP-581SG 1:1 1:0.119 L0A=300
L0.45A≥80%(L0A )		 4.0 890 13 1500

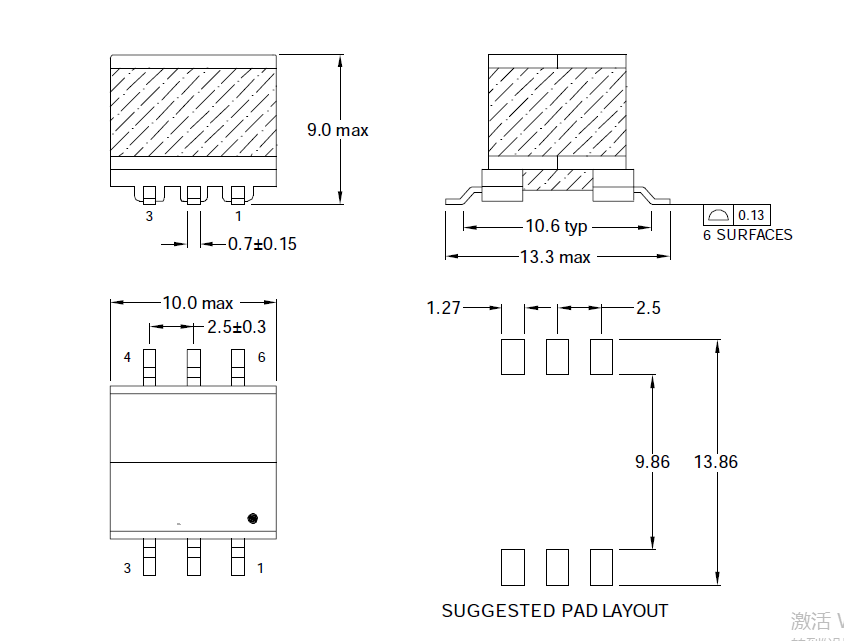

Dimensions:

EP7 Miniature Flyback Transformer DC/DC Converters EP-581SG 13.3*10.0*9.0mm Size
