SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System

SMD/SMT Common Mode Line Filter

• Low profile, only 5.3 mm height, suitable for limited space design
• High Impedance, up to 2200Ω
• High rated current, up to 5A
• Rated voltage reach to 80VDC or 42VAC
• Dimension: 9.5mm(L)*8.3mm(W)*5.3mm(H)

Typical Applications

• Power supply system
• Signal and sensor lines
• Current compensated choke for data and signal lines
• Suppression of common-mode noise

Product details:

Real Product Photo:

Mechanical Dimensions:

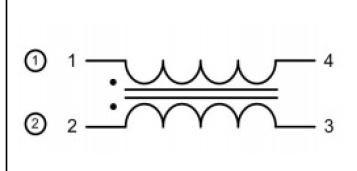

Schematics:
