Specifications
Brand Name :
Leadsintec
Model Number :
PCBA
Certification :
IATF16949, ISO13485, ISO9001
Place of Origin :
Shenzhen
MOQ :
1pcs
Price :
Negotiable (Depends on your gerber and bom)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
80000pcs/month
Delivery Time :
1-30days
Packaging Details :
PCB: Vacuum Packing / PCBA: ESD Packing
Product name :
ems electronic PCB Assembly
Copper thickness :
1/2OZ 1OZ 2OZ 3OZ
Base material :
FR-4
Surface finishing :
HASL/OSP/ENIG
Solder mask color :
White Black Yellow Green Red
Layers :
1-58layers
Description

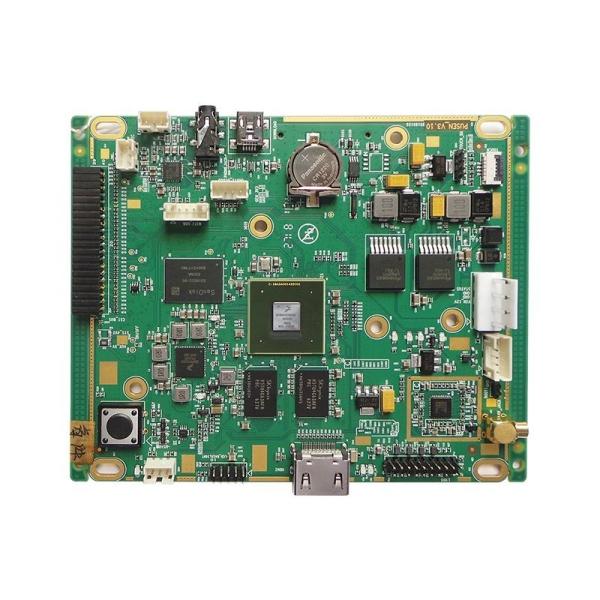

OEM Electronic EMS PCB Assembly High Frequency 4OZ 1.6mm Thickness

EMS Pcb Assembly Pcba Pcba Circuit Board Assembly PCB Assembly Service OEM Electronic PCBA Circuit Board Assembly

Service


* Small to a medium volume PCB manufacturer
* Multi PCB types manufacturer
* EMS/PCBA/OEM customers reliable PCB partner
* Trustworthy supplier for PCB trading companies

Product parameters:

Description Capability
Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)
0.003”(0.07mm)
Standard (0.1-4mm±10%)
Board Thickness Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Outer Cu weight 0.5-4 Oz
Inner Cu weight 0.5-3 Oz
Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Solder Mask Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Silkscreen Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA


OEM Electronic EMS PCB Assembly High Frequency 4OZ 3OZ 1.6mm Thickness

Leadsintec Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. Leadsintec is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.



ASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO 9001, IATF 16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.



Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.


Delivery time for PCB

Layer Prototype

Mass Productions
(above 30 m2 )

Quick Turn Unual Time
2 24 hours 3-4 days 8-10 days
4 48 hours 5-6 days 10-12 days
6 72 hours 6-8 days 12-14 days
8 96 hours 8-10 days 14-16 days
10 120 hours 12-14 days 16-18 days
... ... ... ...


Delivery Time for PCBA
Order Conditions Standard Delivery Date The fastest Delivery Date
Prototype (<20 pcs) 2 days 8 hours
Small Volum (20-100 pcs) 3 days 12 hours
Medium Volum(100-1000 pcs) 6 days 24 hours
Mass productions (>1000 pcs) Depends on BOM Depends on BOM



Leadsintec is the best pcba factory in china for customers of aerospace, automotive, medical, industry, military, smart home, communication, which keep long-term cooperation with domestic and abroad clients over 20 years.
