Product Advantages:

An SMT component is usually smaller than its through-hole counterpart because it has either smaller leads or no leads at all. It may have short pins or leads of various styles, flat contacts, a matrix of solder balls (BGAs), or terminations on the body of the component.

The main advantages of SMT over the older through-hole technique are:

1. Smaller components.

2. Much higher component density (components per unit area) and many more connections per component.

3. Components can be placed on both sides of the circuit board.

4. Higher density of connections because holes do not block routing space on inner layers, nor on back-side layers if components are mounted on only one side of the PCB.

Specifications:

Image Shown:

Supply Advantages:

Supply new and used yamaha feeders at lower price:

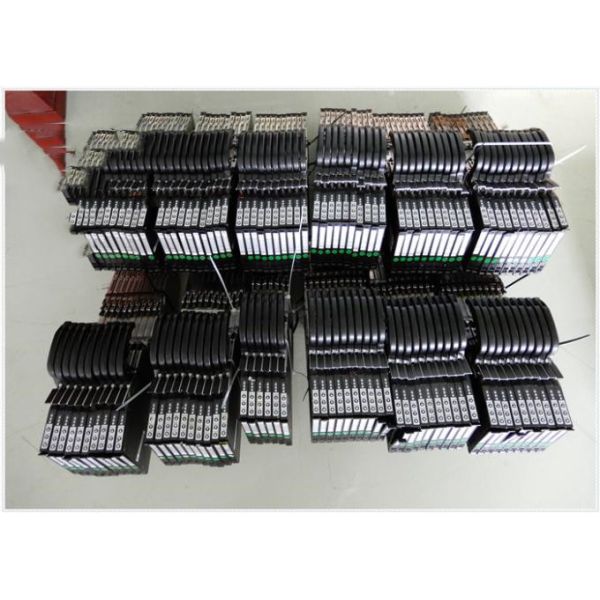

• YAMAHA SS 8mm ELECTRIC feeder KHJ-MC100-000
• YAMAHA SS 12mm ELECTRIC feeder KHJ-MC200-000
• YAMAHA SS 16mm ELECTRIC feeder KHJ-MC300-000
• YAMAHA SS 24mm ELECTRIC feeder KHJ-MC400-000
• YAMAHA SS 32mm ELECTRIC feeder KHJ-MC500-000
• YAMAHA SS 44mm ELECTRIC feeder KHJ-MC600-000
• YAMAHA SS 56mm ELECTRIC feeder KHJ-MC700-000
• YAMAHA SS 72mm ELECTRIC feeder KHJ-MC800-000
• YAMAHA SS 88mm ELECTRIC feeder KHJ-MC900-000
• YAMAHA ZS 8mm ELECTRIC feeder KLJ-MC100-000
• YAMAHA ZS 12mm ELECTRIC feeder KLJ-MC200-000
• YAMAHA ZS 16mm ELECTRIC feeder KLJ-MC300-000
• YAMAHA ZS 24mm ELECTRIC feeder KLJ-MC400-000
• YAMAHA ZS 32mm ELECTRIC feeder KLJ-MC500-000
• YAMAHA ZS 44mm ELECTRIC feeder KLJ-MC600-000
• YAMAHA ZS 56mm ELECTRIC feeder KLJ-MC700-000
• YAMAHA ZS 72mm ELECTRIC feeder KLJ-MC800-000
• YAMAHA ZS 88mm ELECTRIC feeder KLJ-MC900-000
• YAMAHA FT feeder 8×2mm KJW-M1100-023
• YAMAHA FT feeder 8×4mm KJW-M1200-023
• YAMAHA FS2 feeder 8×2mm KJK-M1300-011
• YAMAHA FS2 feeder 8×4mm KJK-M1500-011
• YAMAHA CL feeder 0201mm KW1-M1500-030
• YAMAHA CL feeder 8×2mm KW1-M1300-000
• YAMAHA CL feeder 8×4mm KW1-M1100-000
• YAMAHA CL feeder 12mm KW1-M2200-301
• YAMAHA CL feeder 16mm KW1-M3200-100
• YAMAHA CL feeder 24mm KW1-M4500-015
• YAMAHA CL feeder 32mm KW1-M5500-000
• YAMAHA CL feeder 44mm KW1-M6500-000
• YAMAHA CL feeder 56mm KW1-M7500-000
• YAMAHA CL feeder 72mm KW1-M8500-000
• YAMAHA CL feeder 88mm KW1-M9500-000

Related Parts:

SMT Applications:

Although it is possible to use some SMT components for home construction, great care is required when soldering them. Additionally even the ICs having a wide pin spacing may be difficult to solder.

Those with fifty or more pins cannot be soldered without special equipment. They are intended only for large scale manufacturing. Even when working on boards that have already been built great care is needed. However these SMT components offer great cost savings to manufacturers and this is why they have been adopted. Fortunately for the home constructor, traditional leaded components that can be soldered manually are still widely available and offer a much better solution for home construction.
