High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
Specifications
Brand Name :
DEK
Model Number :
DEK 03IX
Certification :
CE,ISO9001
Place of Origin :
UK
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500/month
Delivery Time :
2-3days
Packaging Details :
Normal packaging
part no :
03IX
Warranty :
6 months
Usage :
DEK SMT machine
Quality :
100% Tested
Type :
SMT machine parts
Product name :
DEK 03IX Screen Printer
Condition :
Original used
Description

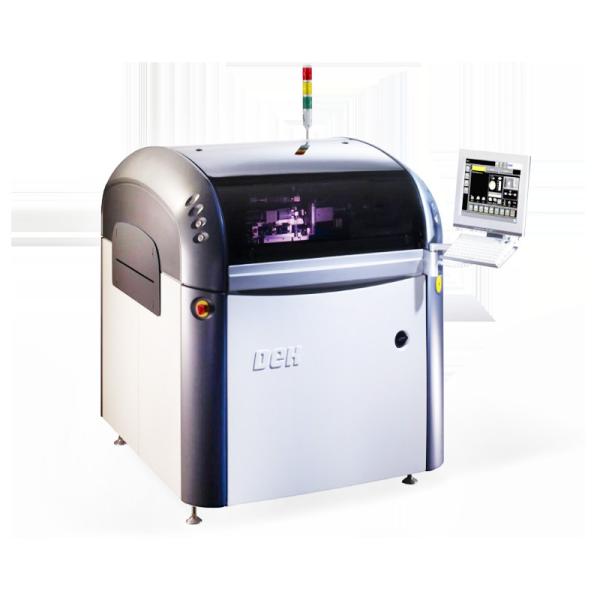

DEK 03IX Screen Printer
Warranty:6 months
Usage:DEK SMT machine
Quality:100% Tested
Brand Name:DEK
Type:SMT machine parts
Condition:Original use
  • Print Pressure : 0kg to 20kg
  • Print Speed : 2mm/sec to 300mm/sec
  • Print Gap : 0mm to 6mm
  • Squeegee : Clamped double trailing edge squeegee (1 set included)
  • Squeegee Pressure Mechanism : Software controlled, motorised
  • Core Cycle Time : 12 secs (11 secs with HTC option)
  • Maximum Print Area : 510mm* (X) x 508.5mm (Y)
  • Printing Environment Control : Temperature – Temperature Control Module (TCM)
  • Vision System : Cognex
  • Fiducial Recognition : Automatic fiducial teach and find incorporating 0.1mm fiducial capture
  • Fiducial Size: 0.1mm to 3mm
  • Under Stencil Cleaning : Blue large board cleaner (580mm)
  • Substrate Handling Size (maximum) : 620mm (X) x 508.5mm (Y) – Long Board Option
  • Voltage: 100 Volts to 240 Volts +/- 10%. Single phase 50/60Hz
  • Maximum Current at 115V : 20 Amps with vacuum pump 6 Amps without vacuum pump
  • Maximum Current at 230V : 10 Amps with vacuum pump 3 Amps without vacuum pump
  • Over Current Protection : An external circuit breaker ≤ 25 Amps is required to be fitted in line with the machine supply
  • Dimensions : 2060mm x 1500mm x 1570mm (81.1” x 59” x 61.8”)
  • Weight : 660kg

High Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer OriginalHigh Speed Smt Assembly Equipment 100% Tested DEK 03IX Screen Printer Original
