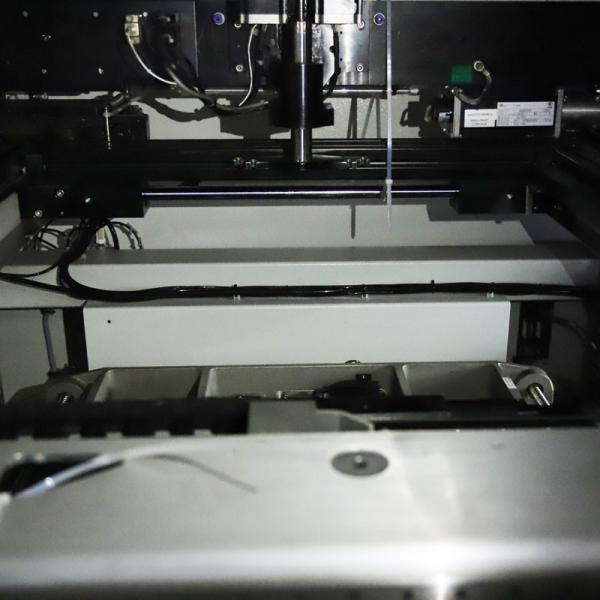

Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Condition Original SMT Line Machine High Speed DEK Screen Printer - Horizon 02i
Specifications
Brand Name :
DEK
Model Number :
Horizon 02i
Certification :
CE,ISO9001
Place of Origin :
UK
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500/month
Delivery Time :
2-3days
Packaging Details :
Normal packaging
part no :
Horizon 02i
Warranty :
6 months
Usage :
DEK SMT machine
Quality :
100% Tested
Type :
SMT machine parts
Product name :
DEK Screen Printer – Horizon 02i
Condition :
Original used
Description
DEK Screen Printer – Horizon 02i
Warranty:6 months
Usage:DEK SMT machine
Quality:100% Tested
Brand Name:DEK
Type:SMT machine parts
Condition:Original used
Transport System Specification
Type Single piece with 3mm round transport belts
Rail Justification Front fixed rail
Width Adjustment Programmable motorised rear rail
Min. Board Size (Handling) 50mm (X) x 40mm (Y)
Max. Board Size (Handling) 508mm (X) x 508mm (Y)
Transport Direction Left to right Right to left Left to left Right to right
Substrate Location Patented over the top clamps
Underside Component Clearance

Substrate Thickness

 3mm to 42mm

0.2mm to 6mm
Substrate Max. Weight 1kg
Substrate Warpage Up to 8mm including substrate thickness
Vision Specification
Vision System Cognex
Camera Lighting Software controlled programmable LED lighting
Fiducials 2
Fiducial Types Synthetic fiducial library or unique pattern recognition
Fiducial Size 0.5mm to 3mm
Fiducial Locations Anywhere on substrate
Fiducial Error Recovery Auto lighting adjustment Auto fiducial search
Operating Environment Specification
Temperature o o o o

10 to 35 C (50 to 95 F)
Humidity 30% to 70% Relative Humidity (non condensing)
Process Parameters Specification
Print Pressure 0kg to 20kg
Print Gap 0mm to 6mm
Screen Separation Speed: 0.1mm to 20mm/sec
Distance: 0mm to 3mm
Print Modes ProFlowTM
Print/Print
Print/Flood
Flood/Print
Adhesive
Paste Knead Programmable: number, period, on demand
Shipping Information Specification
Approx. Weight 820kg boxed 677kg unboxed
Approx. Dimensions 2060mm x 1500mm x 1570mm (81.1” x 59” x 61.8”)
