High Production Capacity SMT Line Machine , SMT Reflow Soldering Machine
High Production Capacity SMT Line Machine , SMT Reflow Soldering Machine
High Production Capacity SMT Line Machine , SMT Reflow Soldering Machine
High Production Capacity SMT Line Machine , SMT Reflow Soldering Machine
Specifications
Brand Name :
KT
Model Number :
KTR-1200D
Certification :
CE ,ISO
Place of Origin :
China
MOQ :
1unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5Unit/Month
Delivery Time :
25 days
Packaging Details :
Wooden packing
Dimension(L × W × H) :
7050*1680*1530
Weight :
Approx 3360 kg
Length of heating zone :
4765mm
Number of heating zone :
Top 12/Bottom 12
Number of cooling zone :
Top 3/Bottom 3
Power supply :
3 phase ,380v 50/60HZ(Option:3 phase ,220v 50/60HZ
Total power :
99KW
Temperature control range :
Room Temperature -300℃
Temperature control method :
PID close loop control + SSR driving
Temperature control precision :
±1℃
Temperature deviation on PCB :
±1.5℃(by RM board test standard)
Max width of PCB :
400mm(option:460mm) dual-rail 300mm*2
Range of rail width :
50-400mm(option:50-460mm) dual-rail 300mm*2
Description

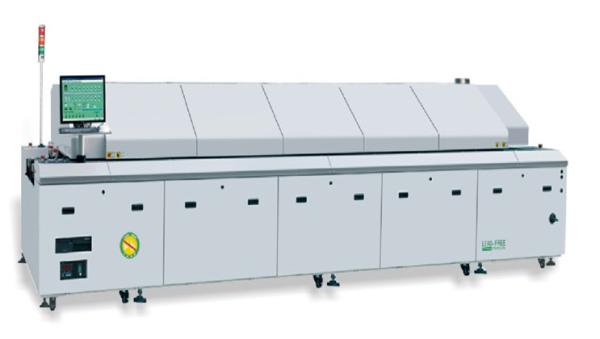

KTR Series Lead-Free Hot Air Reflow Ovens KTR-1200D

Product features:

  • Using the world's leading microcirculation technology, the whole furnace is divided into 3232 independent cells, compared with the small loop structure, by
  • In the small cycle of its hot air blowing from the outlet after a furnace through the distance will be the furnace around the return air outlet to recover, and
  • In the recovery process, but also with the furnace and other outlet gas blowing interference, resulting in the temperature of each piece of PCB
  • The line is constantly fluctuating, so that the welding accuracy is affected, and the microcirculation hot air system is how many points of the jet, there are many points back
  • Received the technology, popular words is that every outlet around it is its own outlet, so that greatly guarantee the temperature inside the furnace
  • Uniform, the board surface in the heat because it will not produce a similar small cycle because the return air process and the resulting refraction of the romantic shadow phenomenon, so
  • PCB soldering temperature curve when the temperature is very high, very suitable for lead-free process space window small component welding.

Product parameter:

Machine parameter
Dimension(L × W × H) 7050*1680*1530
Color Computer grey
Weight Approx 3360 kg
Number of heating zone Top 12/Bottom 12
Length of heating zone 4675mm
Number of cooling zone Top 3/Bottom 3
Rectifying plate structure Small circulation
Exhaust volume requiement 12m³/min*2(Exhausts)
Control system
Power supply requiement 3 phase ,380v 50/60HZ(Option:3 phase ,220v 50/60HZ
Total power 99KW
Startup power 44KW
Normal power consumption 12KW
Warming Time Approx:20min
Temperature control range Room Temperature -300℃
Temperature control method PID close loop control + SSR driving
Temperature control precision ±1℃
Temperature deviation on PCB ±1.5℃(by RM board test standard)
Data storage Process data and status storage
Abnormal alarm Abnormal temperature(extra-high/extra low temperature after constant temperature)
Board dropped alarm Singal light(yellow-warning;green normal;red -Abnormal
Conveyor system
Rails structure Overall sectional type
Chain structure Double buckle for preventing board jammed
Max width of PCB 400mm(option:460mm) dual-rail 300mm*2
Range of rail width 50-400mm(option:50-460mm) dual-rail 300mm*2
Component height Top 30/Bottom 30mm
Conveyor direction L→R(option:R→L)
Conveyor rail fixed type Front rail fixed(option: Rear rail fixed)
PCB conveyor direction Air-reflow=chain+mesh(N2-reflow=chain option:mesh)
Conveyor height 900±20mm
Conveyor speed 300-2000mm/min
Auto-lubrication Multi-lubricating mode can be chosen
Cooling system
Cooling method Firced air Water chiller
