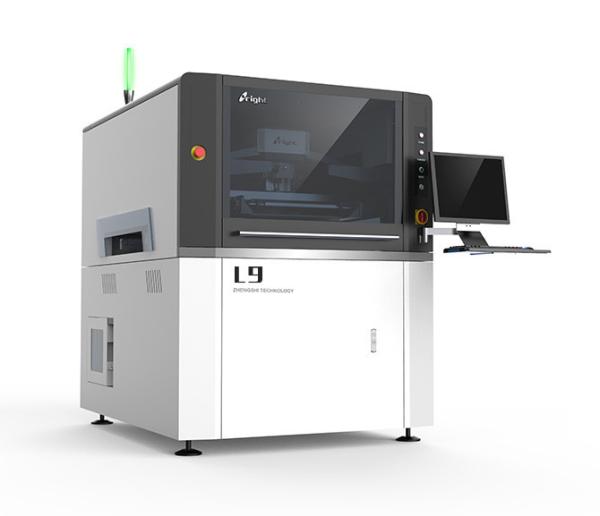

Arch Bridge Type Automatic Solder Paste Printer L9 4.5-6Kg/Cm2 Air Required
Arch Bridge Type Automatic Solder Paste Printer L9 4.5-6Kg/Cm2 Air Required
Specifications
Brand Name :
Morel
Model Number :
L9
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set / Month
Delivery Time :
20- 25 days
Packaging Details :
Vacuum sealed packing
PCB Min Size :
50X50mm
PCB Max Size :
900X600mm
Cycle Time :
<12s (Exclude Printing & Cleaning)
Air Required :
4.5~6Kg/cm2
Machine Dimensions :
1580(L)X1530(W)X1500(H)mm
Machine Weight :
Approx:1400Kg
Description

Advantage

1, Arch bridge type suspending direct-connected scraper.

2, Print head with the programmable and suspending self-adjusting stepper motor drive.

3, Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth.

4, Unique belt transmission system avoids being stuck or fall-off of PCB.

5, Programmable motor controls transport speed and puts PCB in the precise position.

6, The unit to clean is separated from CCD camera, which can minimize the load of motor and impulse, improve the positioning precision and speed and extend the service life.

7, With Stepper motor and lead screw, the direct connection UVW platform is featured with high precision, high rigidity and compact structure.

Specifications

Screen Frames Min Size 737X400mm
Max Size 1100X900mm
Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 900X600mm
PCB Thickness 0.4~8mm
PCB Warpage ＜1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location Support System Magnetic Pin/Up-down table adjusted/supportblock by hand
Clamping System side clamping,vacuum nozzle
Print head Two independent motorised printheads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~30Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
CCD FOV 8x6 mm
Solder Paste lnspection 2Dlnspection ( Standard )
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <12s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1580(L)X1530(W)X1500(H)mm
Machine Weight Approx:1400Kg
