Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
Specifications
Brand Name :
Morel
Model Number :
Morel - F10
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500/month
Delivery Time :
2-3days
Packaging Details :
Normal packaging
part no :
Morel - F10
Warranty :
6 months
Usage :
Morel SMT machine
Quality :
100% Tested
Type :
SMT machine
Product name :
Lead- free Hot Air Reflow Oven - Morel F10
Condition :
Original new
Description
Lead- free Hot Air Reflow Oven - Morel F10
Warranty:6 months
Usage:FUJI SMT machine
Quality:100% Tested
Brand Name:Morel
Type:SMT machine parts
Condition:Original new
Model Morel F10

Heating System

 Number of heating zones Top 10/ bottom 10
Number of cooling zones 2(top 1, bottom 1)
Heating passage 3700mm
Heating style Hot air
Cooling style Forced air cooling
Exhaust Volume 10m³/min * 2 vanes

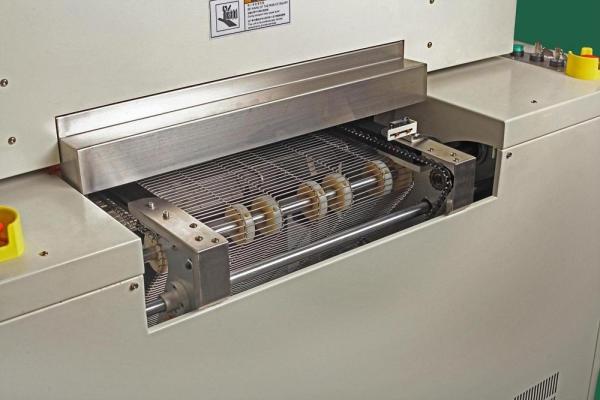

Conveyor System

 Max. Width of PCB 400mm
Mesh belt width 450mm
Conveyor Direction L→R(option: R→L)
Process Height 900±20mm
Conveyor type Mesh and chain
Range of rail width 50-400mm
Conveyor speed 0-2000mm/min
Auto/manual Lubrication Standard
Fixed Track Front track fixed(option: rear track fixed)
Product clearance Top and bottom 25mm

Control system

 Power supply 5 line 3 phase 380V 50/60HZ
Total power 58KW
Startup power 50KW
Steady consumption 10KW
Ramp up time 20 mins
Temp. setting range From room temp. To 300℃
Temp. control method PID close loop control & SSR driving
Temp. control precision ±1℃
Temp. deviation on PCB ±2℃
Data storage Process Data and status storage(80GB)
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temperature (overtemp/low temperature)
Board dropped alarm

Tower light:

Amber-warming, Green-normal, Red-abnormal

General

 Dimension(L*W*H) 5400*1320*1490mm
Weight 2300kg
Color Computer gray

Hot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement EquipmentHot Air Reflow Oven SMT Production Line , Morel F10 SMT Placement Equipment
