Specifications
Brand Name :
Morel
Model Number :
Morel - R8
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500/month
Delivery Time :
2-3days
Packaging Details :
Normal packaging
part no :
Morel - R8
Warranty :
6 months
Usage :
Morel SMT machine
Quality :
100% Tested
Type :
SMT machine
Product name :
Lead- free Hot Air Reflow Oven - Morel R8
Condition :
Original new
Description
Lead- free Hot Air Reflow Oven - Morel R8
Warranty:6 months
Usage:FUJI SMT machine
Quality:100% Tested
Brand Name:Morel
Type:SMT machine parts
Condition:Original new
Model Morel R8

Heating System

 Number of heating zones Top 8/Bottom 8
Number of cooling zones 2
Heating passage 3600mm
Heating style Hot air
Cooling style Air Oven: Forced air; Nitrogen Oven: Water Chiller
Exhaust Volume 10m³/min * 2 vanes

Conveyor System

 Max. Width of PCB 450mm
Mesh belt width 500mm
Conveyor Direction L→R(or R→L)
Process height 900±20mm
Conveyor type Mesh and chain
Range of rail width 0-450mm
Conveyor speed 0-2000mm/min
Auto/manual Lubrication standard
Fixed track Front rail fixed(option: rear rail fixed)
Product clearance Top and bottom 25mm

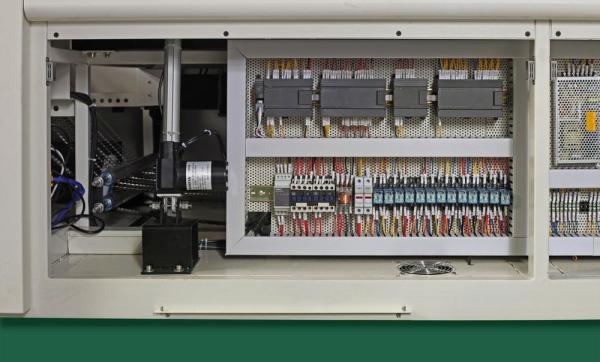

Control system

 Power supply 5 cables 3 phase 380V 50/60Hz
Total consumption 40kw
Startup consumption 38kw
Steady consumption 8KW
Ramp up time About 20 mins
Temp. set-point range Room temperature-300℃

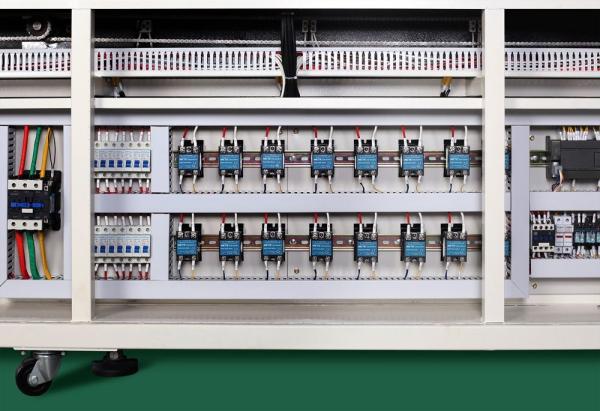

Temp. control method PID close loop control & SSR driving
Temp. control precision ±1℃
Temp. deviation on PCB ±2℃
Data storage Process Data and status storage(80GB)
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temp. (over-temp/low temp.)
Board dropped alarm Light Tower: Amber-warming, Green-normal, Red-abnormal

General

 Dimension(L*W*H) 5200×1400×1550mm
Weight 2200KG
Color Computer grey

Lead Free SMT Assembly Line , Morel PCB Assembly Equipment Hot Air Reflow OvenLead Free SMT Assembly Line , Morel PCB Assembly Equipment Hot Air Reflow Oven
