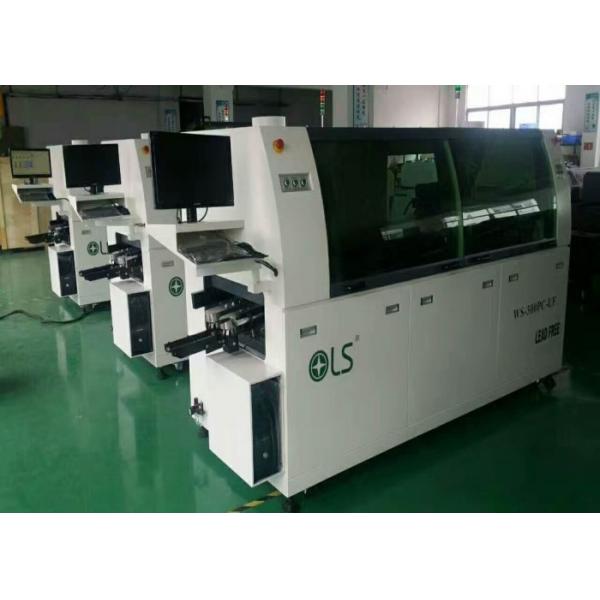

Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Double Wave Soldering Equipment , Standard Computer Control DIP Soldering Machine
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
WANBOSST
Model Number :
300PC
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
Wooden box package
MOQ :
1 Piece/Pieces
Price :
discuss price
Customize :
Yes
Speed :
0-2.0m/min
PCB width size :
Max 350mm
Soldering temperature :
0~350℃
Weight :
850KG
Preheating zone length :
1500mm
Preheating zone number :
3 stages
Power supply :
AC380V
Port :
Shenzhen
Description

Standard computer control Dual wave solder machine 300PC double wave soldering machine solder dipping machine

Product name: 300PC Standard computer double wave soldering machine

Product Features:

1 Body linear design, using spray technology, beautiful and durable

2 Three separate 1.5 m preheating section, all hot air preheating, with spotlights compensation device, the PCB to get a good welding results
3 Patent-type titanium alloy die-cast claw chain, non-stick tin, never deformation, long life
4 Throughout the observation window for easy operation and maintenance
5 Tin stove down and out, with auto and manual adjustment. The use of back design to prevent misuse damage the machine
6 Equipped with a cooling module, the temperature compensation module, suitable for lead-free solder and a variety of process requirements
7 The latest invention of ultra-smooth, ultra filtered source generator, significantly weakened the flow of shock flow and turbulence within the tin production, tin wave stable, oxidation is greatly reduced, maintenance is simple
8 Modular design with precision drive mechanism, drive accurate, long life, easy maintenance
9 Rosin spray device can be pulled out, and removable, easy to clean and maintain
10 Isolated spray device, flux fumes from the exhaust air duct dedicated
11 Powerful library function parameters, various types of PCB process parameters can be invoked on demand operating
12 A professional industrial computer control system to ensure reliability and stability
13 The user can set the date, time and temperature parameters for Automatic Switcher
14 Self-diagnosis system failure, malfunction automatically, troubleshooting queries at any time
15 Heating temperature using PID closed-loop control, temperature control is stable and reliable.
16 Automatic tracking loop spray system, spray width and spray time to adjust, and spray as needed to extend the time set in advance and
17 Over automatically from the wave plate, to minimize the amount of tin oxide
18 Transport system with force limiters + limiting clutch double protection device
19 Short circuit and overcurrent protection system

20 Transportation system closed-loop control. Variable speed, precise control of PCB preheating and welding time.

Industrial PC control system dual wave soldering equipment, in addition to the usual machine-compatible automation performance, the more streamlined body design, simple and convenient computer window system, automated production and management of records to the next level

Product parameters:

PCB Working width Max. 300mm
PCB conveyor direction 760±10mm
PCB conveyor speed 0-2.0m/min
Preheating zone length 1500mm
Preheating zone number 3 stages
Preheating temperature 0~250℃
Solder volume 200-300KG Can be customized
Solder temperature 0~350℃
Temperature control type PC+PID
Flux storage tank Max5.2L
Power AC380V
Power for heating up 20KW
Power for operation 7KW
Air supply 4-7kg/cm2 12.5L/min
Weight 850KG
Dimensions L*W*H 3650*1200*1650mm
