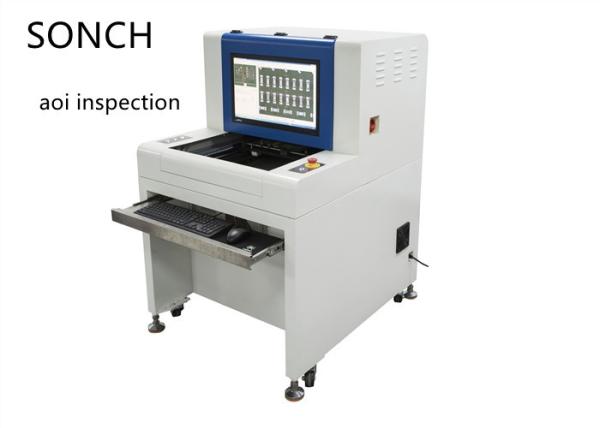

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment
TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment
Specifications
Brand Name :
WANBO
Model Number :
X1
Place of Origin :
CHINA
MOQ :
1
Price :
discuss price
Supply Ability :
100pcs/month
Packaging Details :
wooden box package
Product name :
AOI
Inspect PCB :
after reflow oven
Camera :
5 megapixel high definition intelligent industrial camera
Power :
AC220V 50/60HZ
Description

aoi tsukasa aoi yu

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment

Test PCBA specification
PCBA Size range 50*50mm~430*330mm
Thickness range 0.5~5.0mm
Maximum PCBA Weight 3kg
PCBA cur vature ＜5mm Or 2% of diagonal length
PCBA Height Top:30mm； Bot:60mm
Check result output 22 Inch LCD,suppor t output OK/ng buff shunt
TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment
Extended Function
Bar code System:Automatic barcode recognition(1D&2D)
Remote Control:Remote operstion through TCP/IP
Ser ver Mode:With the central ser ver,multiple Aol data can be centralized and managed
SPC and Program Control:Recoed and analyze the test data in the whole process,and view the production status and quality analysis through remote control
Special funct:Multi connected board multi program detection,a/B side automatic switching program detection function
TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment
Teansmission mechanism
ConveyorFlow direction/ speed: The PCB is located on the Y-axis track .With the entr y and exit of the y-axis track .the entr yand exit speed is 2 seconds /PCs
Conveyor Height above ground: 900mm±30mm
Track width ad justment:Manual adjustment
Splint system:The automatic opening and clamping double-sided splint system can automatically correct the deformation sf PCB board

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment


Imageacquisition and motion control system
1.Use a top-down shot structure
2.High definition 10 megapixel industrial lens
3.High precision ser vo motion system

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment
