SMT DEK Horizon 03ix 01i Pcb Screen Printer Full Auto Standard Period 6.5 Sec Process 8 Sec
SMT DEK Horizon 03ix 01i Pcb Screen Printer Full Auto Standard Period 6.5 Sec Process 8 Sec
SMT DEK Horizon 03ix 01i Pcb Screen Printer Full Auto Standard Period 6.5 Sec Process 8 Sec
SMT DEK Horizon 03ix 01i Pcb Screen Printer Full Auto Standard Period 6.5 Sec Process 8 Sec
Specifications
Brand Name :
DEK
Model Number :
Horizon03ix
Certification :
CE
Place of Origin :
JAPAN
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Paypal, Westernunion are all allowed
Supply Ability :
10pcs/day
Delivery Time :
5-7 work days
Packaging Details :
woodenbox
product name :
Horizon03ix
MODEL :
Horizon01i
Weight: :
820KG
Delivery Time: :
IN Stork
Packing: :
vacuume woodenbox
CONdition :
Working
PAYMENT TERM :
T/T, Paypal, Westernunion are all allowed
Description

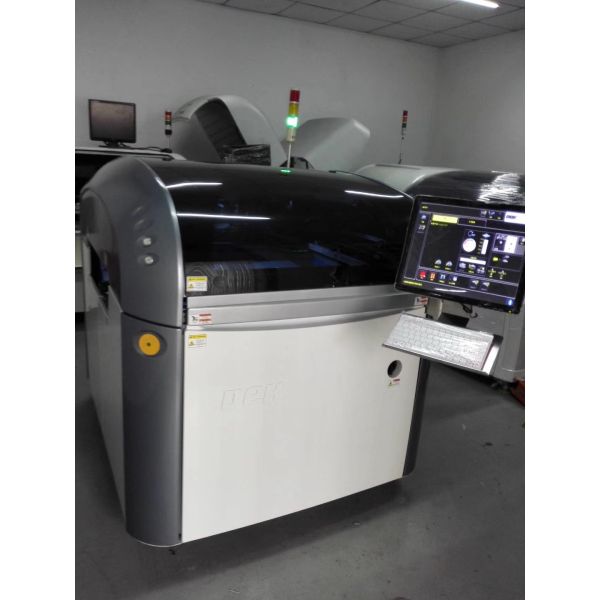

SMT DEK Horizon03ix 01i full auto printer Standard period 6.5 seconds + process 8 seconds + process Maximum printing s
SMT DEK Horizon03ix 01i full auto printer Standard period 6.5 seconds + process 8 seconds + process Maximum printing s

DEK Horizon 03iX features:
Advanced top/down vision system
Independently controlled and regulated lighting
High speed moving lens
High precision servo motor drive and PC control
Automatic, unassisted stencil bottom cleaning function
Programmable control dry, wet or vacuum cleaning

Intelligent modular press solution: DEK NeoHorizon
Our latest generation of powerful screen printers are modular in design and can be customized to any customer-specific or application-specific requirements. DEK NeoHorizon can be equipped with or re-selected a number of powerful options with enhanced precision, including splint systems, transfer rails, support systems, solder paste management, certification and the new DEK ProFlow ATx printhead system. This flexible option is easily and comfortably controlled with the leading press software DEK InstinctivTM V9.
DEK NeoHorizon offers two basic models of press configurations:
The DEK NeoHorizon 03 iX is equipped with the DEK HawkEye 750 camera system, semi-automatic loading stencil system and standard stencil bottom cleaning system with a core production cycle of 8.0 seconds and a machine accuracy of ±20 μm @ 2 Cmk for highly mixed environments.
With a core production cycle of 6.5 seconds and enhanced accuracy of ±15 microns @ 2 Cmk, the DEK NeoHorizon 01 iX is designed for applications where quality and throughput are critical, such as 0201 (metric) components. This configuration is equipped with a high-resolution DEK HawkEye 1700 camera, a fully automated loading stencil system, and a high-end DEK Cyclone stencil bottom cleaning system.
Back to back: single track and double track free switching
The innovative design of the new press and its rugged cover support full control and maintenance operations at the front of the machine. You can now put two DEK NeoHorizon presses back to back together to create an intelligent, flexible dual-track solution to meet future needs. At the same time, the two machines can still be configured and operated separately. When a two-track solution is no longer needed, you can separate the two presses and reuse them for a separate line. This unique capability will give you the perfect combination of flexibility and investment protection.
Advantage
The new DEK NeoHorizon press offers the following advantages
Modular design: the ability to meet the demands of any task at the highest price/performance ratio
Re-equipped, upgraded: all options such as splint system, rail system, optical system, print head and stencil bottom cleaning system can be re-equipped and upgraded, allowing you to upgrade your DEK NeoHorizon as required
Easy to maintain: All operations and maintenance work can be done at the front of the machine. Easy to overhaul all components in the front section.
Fast: core production cycle as short as 6.5 seconds
Accuracy: repeatability up to ±15 μm @ 2 Cmk, ideal for ultra-fine pitch applications with components down to 0201 (metric)
Efficient automation: the latest generation of the legendary DEK ProFlow ATx printhead system automates the screen printing process and significantly enhances its stability and reduces solder paste costs.
Easy to operate: With our powerful DEK InstinctivTM software, you can control everything with ease and convenience.
DEK back-to-back support: The highly flexible dual-track solution supports two presses individually and can be used separately at any time
Technical Parameters
DEK NeoHorizon press technical parameters
Standard configuration
DEK NeoHorizon 01iX
DEK NeoHorizon 03iX
Machine alignment capability
± 12.5 μm @ 2.0 Cmk (6 sigma)
± 12.5 μm @ 2.0 Cmk (6 sigma)
Machine alignment accuracy
± 15 μm @ 2.0 Cmk (± 6 sigma)
± 20μm @ 2.0 Cmk (6 sigma)
Process alignment accuracy
± 20 μm @ 2.0 Cpk (6 sigma)#
± 25 μm @ 2.0 Cpk (6 sigma)#
Standard period
6.5 seconds + process
8 seconds + process
Maximum printing surface
510 mm (X) × 508,5 mm (Y)
User Interface
Touch screen, keyboard and trackball, DEK Instinctiv V9 software
camera
DEK HawkEye 1700 digital camera with 2 LED lighting
DEK HawkEye 750 digital camera with 2 LED lighting
Scraper calibration
Motor control belt scraper pressure feedback
Steel mesh load
Automatic, including: collecting the solder paste tray under the scraper
Semi-automatic, including: collecting the solder paste tray under the scraper
Steel net proofreading
Motor control (alignment motor); X direction Y direction and angle rotation alignment.
Motor control (alignment motor); X direction Y direction and angle rotation alignment.
DEK ProFlow
Option
Steel net bottom cleaning
DEK Cyclone 300 mm/400 mm/515 mm
DEK IUSC 300 mm/400 mm/520 mm
Technical documentation
Printed paper documents: user manual, installation instructions, wiring diagrams.
The software pre-installs the technical manual and a video explaining all the steps.
Compressed air supply
5-8 bar at 5 liters / minute
power supply
100 V to 240 V ±10 %. Single phase 50/60 Hz
weight
According to the option, the general condition is about 690 kg
