Product features:
1, automatic thermocouple position setting import.
2, temperature curve evaluation automation.
3, automatic visual operation instructions.
4, when the instrument is overheated or the battery is too low, it will automatically give instructions to stop the temperature curve test.
5, automatic retrieval can ensure the integrity of the temperature curve data.
6, the stability of the production process is automatically confirmed.

• Product specifications:
• Accuracy :+/-1.2 ° C
• Resolution :0.3 ℃ ~ 0.1 ℃
• Internal operating temperature :0 ℃ ~ 105 ℃
• Applicable thermocouples :9/12 K-type thermocouples
• Measuring temperature range :-150℃ ~ 1050 ℃
• System compatibility :PC compatible
• Power requirements :9 volt alkaline battery
• Dimensions (with standard heat jacket): L 330* W 95* H 34.5(MM)
• Type: American KIC START 2 furnace temperature tester
• Processing customization: Yes
• Brand: KIC USA
• Model: KIC START 2
• Measuring range: -150-1050 (℃)
• Temperature resolution: 0.1℃
• Instrument dimensions: 260*80*20 (mm)
• Insulation box size: 330.2*93*.34 (mm) - furnace size

Typical application areas of products
Electronic manufacturing, semiconductor, photovoltaic, spraying, brazing, new energy, metallurgy, glue curing (vertical furnace), food baking, etc

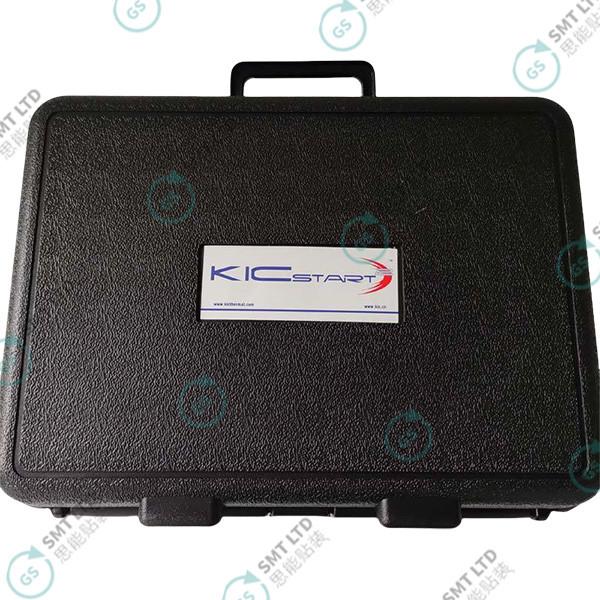

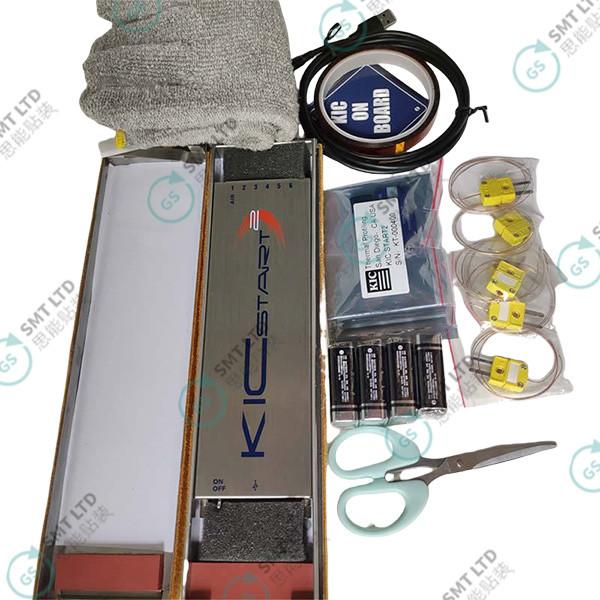

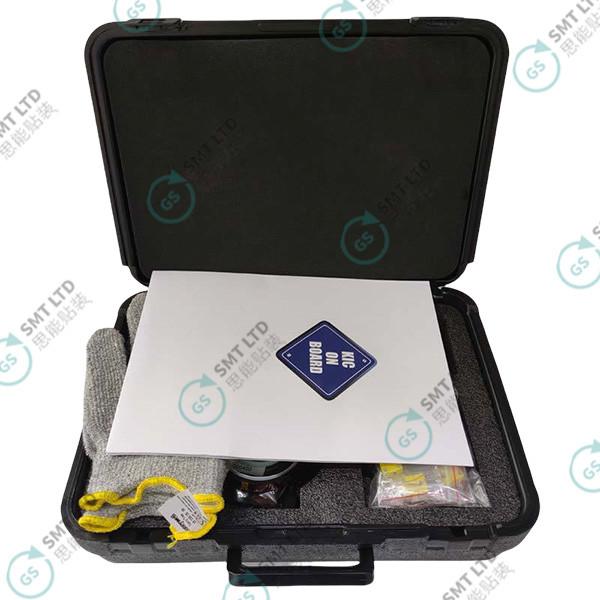

Packing list
1. Instrument
2. Insulated box
Step 3: Scissors
4. High temperature glue
5. Type K thermocouple
6. Insulated gloves
7. Install the software
8.USB
9. Data cable
10. Instruction manual
11. Delivery report
