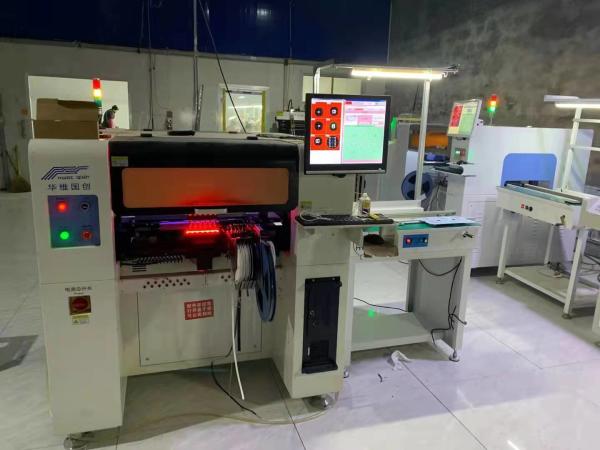

HWGC Manual Chip Mounter Pick And Place Tool 0201-0402 QFN QFP BGA Accuracy
HWGC Manual Chip Mounter Pick And Place Tool 0201-0402 QFN QFP BGA Accuracy
Specifications
Brand Name :
HWGC
Model Number :
HW-DSQ800-120F
Place of Origin :
CHINA
MOQ :
1
Price :
24500-24800$
Payment Terms :
T/T
Delivery Time :
8 work day
MAX circuit board area :
340*560mm
Vision on :
20000pcs/h
OS :
Independent research and development SMT intelligent OS based on Windows
Range of Air Supply Pressure :
0.5-0.7Mpa
Number of head :
8
Number of feeder :
120
Power Supply :
220V 50/60Hz
Number of camera :
11
Description

Stock in EU Automatic Chip Mounter Pick and place machine DSQ800-120F Led Manufacturing Machine with 120 feeders+ servo

Use the same type of cable carriers bearing up to 10 million constant motions as imported machines.
flexible cables designed for industrial motion applicati-on,which can resist a range of dangerous conditions, like extre-me temperatures and oil, and can handle any type of motion, including horizontal, torsional or high speed, ensure the reliab-le connection of the electrical circuit in high-speed reciprocati-ng motion.
The use of imported precision ball screw and linear motion guide,will bring long term maintenance-free operation, high accuracy and noise-free runnning ,improves the machine per-formance effectively.
Guarantee the mounting accuracy of 0201-0402,QFN,QFP and BGA.
Achieve high stability of 24-hour continuous work without downtime, considerably improving the productivity.
Products Description
Specification
Maximum Step Length of Z Axis
50mm
Range of Angle for Components
士180°
Motor
Panasonic AC Servo Motor MINAS A6 series
Driver
Panasonic high-speed DSP driver
Air Supply Requirements
oil water filter,> 60L dust filter and air pressure stabilizer etc
Vacuum Supply of Nozzle
Japanese CKD vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure
0.5-0.6mp
OS
independent research and development SMT intelligent OS based on Windows
Vision Display
17-inch industrial control display
Cable
German lgus durable flexible cable(10 million times)
Power Supply
220V 50/60Hz
Average Power
1500W
Machine Dimensions
1740*1360*1440mm
Weight
1100Kg

FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.

Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
