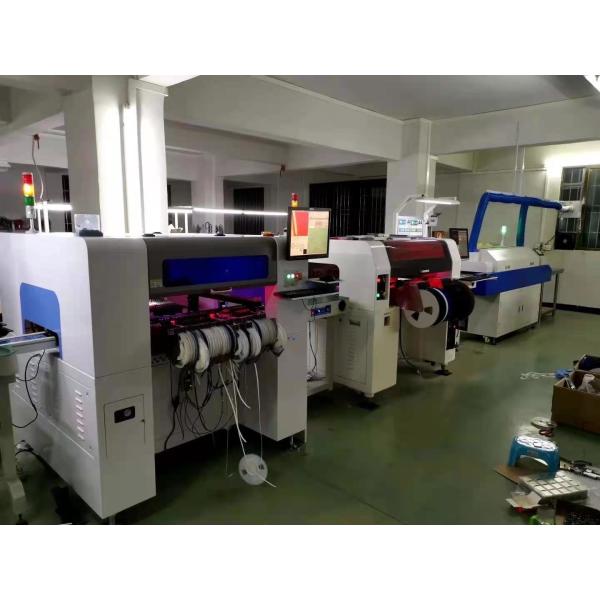

PNP Vitronics Reflow Oven Multifunctional Smt Soldering Machine
PNP Vitronics Reflow Oven Multifunctional Smt Soldering Machine
Specifications
Brand Name :
HWGC
Model Number :
HW-DSQ800-120F
Place of Origin :
CHINA
MOQ :
1
Price :
24500-24800$
Payment Terms :
T/T
Delivery Time :
8 work day
MAX circuit board area :
340*560mm
Vision on :
20000pcs/h
Vision off :
26000pcs/h
Warranty :
1 year
Number of head :
8
Number of feeder :
120
Software :
English
Number of camera :
11
Description

The Best Pick And Place Machine PNP Machine Multi-functional Used SMT Machine With 120 Feeders Perfect For 0201

Beijing HuaweiGuochuang Electronic Technology Co. Ltd. is a Chinese high-tech enterprise with inte-grated research and development
(R&D), producti-on and sales operations. The pick and place machi-ne, SMT's main equipment, is our key research and development
equipment.
Our vision is to become an enterprise which ma-kes cost-effective domestic pick and place machine of our own and we intend to
break the current situ-ation of international monopoly.
We have maintained the philosophy of being pa-triotic, pragmatic, innovative as well as serving the society. The products of pick
and place machine on sale are not only appreciated by small and medium-sized enterprises at home, but also very well receiv-ed by
consumers abroad.

Products Description
Specification
Number of Placement Heads
8(high-accuracy)
PCB Convey Mode
three-stage entry automatic connection from left to right, automatic PCB positioning
Mark Positioning
manual/automatic
Programming Method
automatic programming after manually importing files of PCB coordinates
Control System
HuaweiGuochuang 2021 control system
Maximum Step Length of XY Axis
423mm*734mm(left)423mm*734mm(right)
Tracks of XY Axis
four linear motion quide + four ground ball screw
Motion Mode of XY Axis
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm
Control Computer
industrial control computer with intel high-performance processor
Adjusting Method of Tracks
electric
Range of Nozzle Buffer
4.5mm
Maximum Step Length of Z Axis
50mm
Range of Angle for Components
士180°
Motor
Panasonic AC Servo Motor MINAS A6 series
Driver
Panasonic high-speed DSP driver
Air Supply Requirements
oil water filter,> 60L dust filter and air pressure stabilizer etc
Vacuum Supply of Nozzle
Japanese CKD vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure
0.5-0.6mp
OS
independent research and development SMT intelligent OS based on Windows
Vision Display
17-inch industrial control display
Cable
German lgus durable flexible cable(10 million times)
Power Supply
220V 50/60Hz
Average Power
1500W
Machine Dimensions
1740*1360*1440mm
Weight
1100Kg

FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.

Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the
machine, pls feel free contact us. We will help you in time.

Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
