ISO LED Mounting Machine , Automatic Pick And Place Machine 35000CPH Capacity Speed
ISO LED Mounting Machine , Automatic Pick And Place Machine 35000CPH Capacity Speed
ISO LED Mounting Machine , Automatic Pick And Place Machine 35000CPH Capacity Speed
ISO LED Mounting Machine , Automatic Pick And Place Machine 35000CPH Capacity Speed
Specifications
Brand Name :
ETON
Model Number :
HT-E6T-1200
Certification :
CE,SIRA,CCC,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 UNIT
Price :
USD10000~40000USD per Unit
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability :
30 UNIT per month
Delivery Time :
Within 15 days after receive the downpayment
Packaging Details :
Standard export wooden case package(Can do as customers' requirement)
Application: :
automatic pick and place machine led lamp manufacturing machinery fast smt automatic PCB pick 8 heads PCB pick and place
Applicable Components: :
LED chip,IC,capacitors,resistors,shaped components etc.
NO. of head: :
8 PCS
Capacity Speed: :
35000CPH
PCB Size: :
Max:350*1200mm Min:50*50mm
Repeat Precision: :
±0.02mm
Apply to: :
LED light making,(SMT machine)PCB,Hard light board or soft lamp strip,etc.
Feeder Type: :
Electronic feeder(double motor,more precision)
Name: :
smt pick and place machine/led pick and place machine/led chip mounter
No. of Feeder: :
20 PCS
Description
SMT pick and place machine,LED light making machine,LED light production machine.

Product Description

1. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.


2. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.


3. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.


4. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.


5. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.


6. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.


7. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle

8. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;

Applicalbe industry:

Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry

3 . Technical Parameter :

Model SMT chip mounter HT-E6T-1200
Machine Style Single model with 8 heads
Alignment Flight Vision
Placement Rate Vision:35,000CPH(Optimum)
Feeder Capacity Tape feeder:8mm,12mm,16mm,24mm is avaible
Vibration feeder is avaible


Component Range		 Smallest Size 0402
Largest Size 30mm (Pitch 0.2mm)
Max Height 3mm
Rotation ±360°
Placement Accuracy ± 0.02mm(repeat placement accuracy
X-Y Repeatability ±0.02mm
Board Dimension(mm) Maximum 1200 x 350mm
Minimum 50 x 50mm(Option)
Electricity Supply 220V
Power 4KW
Weight 1200KG

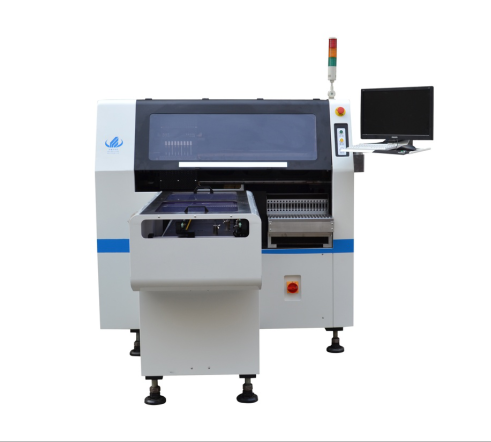

4 . Product Image :

ISO LED Mounting Machine , Automatic Pick And Place Machine 35000CPH Capacity Speed

5 .Our Services

Excellent Service .

Pre-Sales Service

* Inquiry and consulting support.

* Sample machine testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
