Specifications
Brand Name :
ETON
Model Number :
HT-E5
Certification :
CE,SIRA,CCC,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 UNIT
Price :
USD10000~40000USD per Unit
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability :
30 UNIT per month
Delivery Time :
Within 15 days after receive the downpayment
Packaging Details :
Standard export wooden case package(Can do as customers' requirement)
Application: :
Factory Price SMT Pick and Place Machine Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Applicable Components: :
LED chip,IC,capacitors,resistors,shaped components etc.
NO. of head: :
8 PCS
Capacity Speed: :
35000CPH
PCB Size: :
Max:350*500mm Min:50*50mm
Repeat Precision: :
±0.02mm
Apply to: :
LED light making,(SMT machine)PCB,Hard light board or soft lamp strip,etc.
Feeder Type: :
Electronic feeder(double motor,more precision)
Name: :
smt pick and place machine/led pick and place machine/led chip mounter
No. of Feeder: :
20 PCS
Description
SMT pick and place machine,LED light making machine,LED light production machine.

Product Description

1.Features:

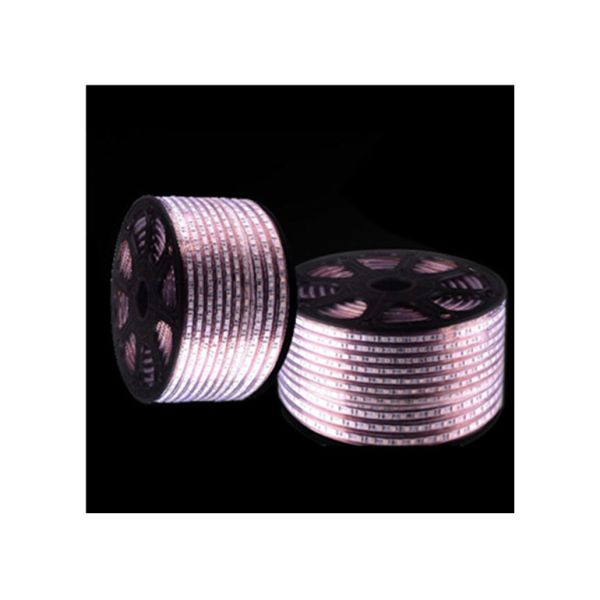

Apply to the SMT machine , PCB , LED hard light board and LED soft lamp strip etc .

Apply to electric board , tube ,driver , bulb , strip , lamp , panel , ceiling light , down light , screen , street light , flood light , etc .

Apply to LED chip , capacitors , resistors , IC , shaped components etc . (intelligent , use widely )

8 nozzles altogether , 20 feeders , partA or partB can be mounted separatly . Easy to operate .

Patent Number : ZL 2011 2 0237740.9/ZL 2011 2 0334606.0

ZL 2012 2 0178869.1/ZL 2012 2 0415505.0

ZL 2012 2 0415044.7/ZL 2012 2 0415356.8/ZL 2012 2 0415061.0

2 . Technical Parameter :

Specifications ETON SMT Pick and Place Machine HT-E5
Alignment Flying Vision
Number of Spindles 8 heads
Placement Speed 35,000 CPH(Optimum)
Placement Accuracy ±50μm+3σ (Based on the Standard Chips)
Component Range Chip 0402 ~30mm
Board Dimension(mm) 50(L) x 50(W)~500(L) x350(W)
Feeder Capacity 8mm,12mm,16mm,24mm option,according to client products
Power AC 220 50/60Hz,single Phase
Air Consumption 0.5 ~ 0.6MPa(5 ~ 6kgf/cm2)
Mass Approx. 1370kg
External Dimension(mm) 1458(L) x 1226(D) x 1437(H)

3 .Our Services

Excellent Service .

Upgrade the software will be free for whole lifetime of machine .

Visit customer regularly and gather information .

Pre-Sales Service

* Inquiry and consulting support.

* Sample machine testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
