Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Specifications
Brand Name :
ETON
Model Number :
HT-E5
Certification :
CE,SIRA,CCC,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 UNIT
Price :
USD10000~40000USD per Unit
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability :
30 UNIT per month
Delivery Time :
Within 15 days after receive the downpayment
Packaging Details :
Standard export wooden case package(Can do as customers' requirement)
Application: :
Factory Price SMT Pick and Place Machine Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly
Applicable Components: :
LED chip,IC,capacitors,resistors,shaped components etc.
NO. of head: :
8 PCS
Capacity Speed: :
35000CPH
PCB Size: :
Max:350*500mm Min:50*50mm
Repeat Precision: :
±0.02mm
Apply to: :
LED light making,(SMT machine)PCB,Hard light board or soft lamp strip,etc.
Feeder Type: :
Electronic feeder(double motor,more precision)
Name: :
smt pick and place machine/led pick and place machine/led chip mounter
No. of Feeder: :
20 PCS
Description
SMT pick and place machine,LED light making machine,LED light production machine.

Product Description

1.Features:

1. Mount order internal implementation of the software automatically optimize, give full play to the four head performance

2. Self-designed hardware and software protection devices make a loss rate of less mishandling.

3. The software interface open operation and set so that the different requirements of customers are met.

4.You can display all the joined board coordinate points in the software, which coordinates and fine-tuning to achieve high-precision placement.

5.You can set the pitch for each joined board in the software, and according to all discharge spacing display coordinates, you can choose which joined board no need to mounting.

2 . Features :

Apply to the SMT machine , PCB , LED hard light board and LED soft lamp strip etc .

Apply to electric board , tube ,driver , bulb , strip , lamp , panel , ceiling light , down light , screen , street light , flood light , etc .

Apply to LED chip , capacitors , resistors , IC , shaped components etc . (intelligent , use widely )

8 nozzles altogether , 20 feeders , partA or partB can be mounted separatly . Easy to operate .

Patent Number : ZL 2011 2 0237740.9/ZL 2011 2 0334606.0

ZL 2012 2 0178869.1/ZL 2012 2 0415505.0

ZL 2012 2 0415044.7/ZL 2012 2 0415356.8/ZL 2012 2 0415061.0

3 . Technical Parameter :

Specifications ETON SMT Pick and Place Machine HT-E5
Alignment Flying Vision
Number of Spindles 8 heads
Placement Speed 35,000 CPH(Optimum)
Placement Accuracy ±50μm+3σ (Based on the Standard Chips)
Component Range Chip 0402 ~30mm
Board Dimension(mm) 50(L) x 50(W)~500(L) x350(W)
Feeder Capacity 8mm,12mm,16mm,24mm option,according to client products
Power AC 220 50/60Hz,single Phase
Air Consumption 0.5 ~ 0.6MPa(5 ~ 6kgf/cm2)
Mass Approx. 1370kg
External Dimension(mm) 1458(L) x 1226(D) x 1437(H)

4 . Our Advantage :

Date Analysis Compared with other Manufacturers

Manufacturers/Parameter Speed Head Precision Patent service
Other company F130 15000CHP 4PCS 0.03mm __ __ NO
Other company 5M168 18000CHP 6PCS 0.03mm __ __ NO
Our Eton HT-XF 150000~170000CPH 34PCS 0.02mm Technology Patents service office
Our Eton HT-T7 100000~130000CPH 60PCS 0.02mm Technology Patents service office
Our Eton HT-E8T 80000CPH 16PCS 0.02mm Technology Patents service office
Data Comparision 4 to 8 times higher than others 4 to 8 times higher than others higher precision Global First Support promptly

5 . Product Image :

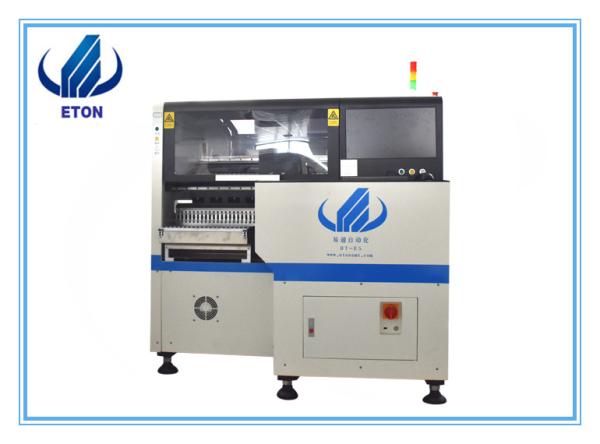

Automatic SMT Pick and Place Machine with Vision pcb prototyping led assembly

6 .Company Information

ETON is the leading SMT factory solution provider in China, offering professional SMT factory building advice and service more than 10 years experience.


Our products have won a good reputation all over the world, We’re sincerely looking forward to serving you in the nearest future.

7 .Packaging & Shipping

1)Standard wooden case package with vacuum package

2)Strong wood package for heavy and large equipment

8 .Our Services

Excellent Service .

Upgrade the software will be free for whole lifetime of machine .

Visit customer regularly and gather information .

Pre-Sales Service

* Inquiry and consulting support.

* Sample machine testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
