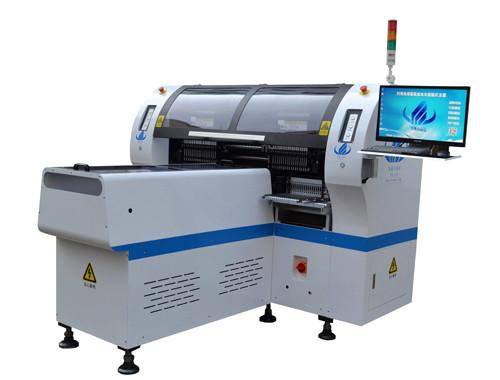

Electronic Feeder SMT Mounting Machine 220 AC HT-XF Apply For Tube / Panel Light
Electronic Feeder SMT Mounting Machine 220 AC HT-XF Apply For Tube / Panel Light
Specifications
Brand Name :
ETON
Model Number :
HT-XF
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1
Price :
US $75000 - 76000 / Unit
Payment Terms :
T/T
Supply Ability :
50
Delivery Time :
30
Packaging Details :
Standard export package(Wooden case with vacuum package)
Dimension :
2700*1900*1530 mm
Total Weight :
1300 KG
PCB Length Width :
Max:330*1200 mm
Mounting speed :
150000-170000 CPH
Power :
220 AC 50 HZ
Feeding way :
Electronic feeder
Description

Capacity reach 170000 CPH With PCB Length Width is 350*1200 mm.

Apply to the 0.6M,0.9M,1.2M LED hard board 0.5M, 1M LED soft lamp strip 17 nozzles for each mounting part, part A of B can be mounted separately of synchronously.

Correction automatically, high precision, available for RGB

Global first technology patent: counterfeiting not allowed

Technical Parameter

led bulb assembly machine/smt production line

PCB PCB length width Max:330*1200 mm Min:80*120 mm
PCB thickness 0.5~5mm
PCB Clamping Adjustable pressure pneumatic.
Mounting Mode Group to pick and group to mount
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 34PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 150000-170000CPH(optimum)
Components LED 3017/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5 kw
Operating Environment 23℃±3
Conveyor Transmission Max Length:1200 mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Air consumption <100 L/min
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor control for X, Y, Z axies.

Packing & Shipping

Package: Standard export package(Wooden case with vacuum package)

Shipping: Shenzhen port within 15 days after payment

About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.

Company Profile

Electronic Feeder SMT Mounting Machine 220 AC HT-XF Apply For Tube / Panel Light

Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.

Eton mission include professional, excellent technology, sharing the results.

Eton goal include to create a national brand, build international Chinese enterprise.

Eton purpose include to create value for customers, creating benefits for society.

FAQ

Q: What is SMT Machine?

This is an LED lamp patch machine using surface mount technology.

Q: Whether the machine's after-sale service is guaranteed?

Each of our machines has a one-year warranty and will regularly visit customers for use.

Q: What are your advantages?

Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q : Is there any quality guarantee?

We stick to quality first, client-oriented, Continuous improvement!

Certificate& Partner

Electronic Feeder SMT Mounting Machine 220 AC HT-XF Apply For Tube / Panel Light

At the exhibition

Electronic Feeder SMT Mounting Machine 220 AC HT-XF Apply For Tube / Panel Light

How to contact us?

Name: Glantine

Tel: +86-13652436725

Fax: +86-755-29502066

WeChat:+86-13600372562

E-mail:et81@eton-mounter

We look forward to cooperating with you. If you have any question, please feel free to contact us!
