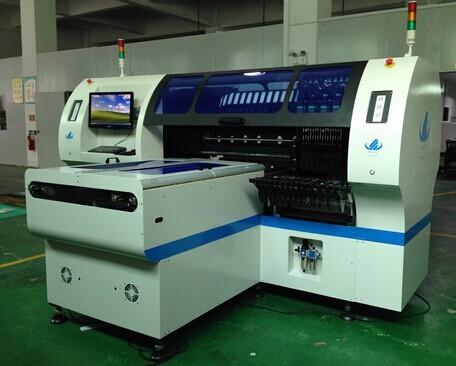

Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed
Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed
Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed
Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed
Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed
Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed
Specifications
Brand Name :
ETON
Model Number :
HT-E8T-1200
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1
Price :
US $76000 - 77000 / Unit
Payment Terms :
T/T
Supply Ability :
50
Delivery Time :
30
Packaging Details :
Standard export package(Wooden case with vacuum package)
Dimension :
3100*2400*1550 MM
Total Weight :
1800 KG
PCB Length Width :
Max 1200*350 MM
Mounting speed :
60000 CPH
Power :
220 AC 50 HZ
Description

Company Introduction

Shenzhen ETON Automation Equipment CO., Ltd. is a national High-tech entsrprise which concentrates on building national brand and provides customers with professional, efficient , low consumption and specializes in R&D.

Quality Principle:

Quality First, Client-oriented,

Continuous Improvement!

1.Features

Double module multi-functional high speed mounter.

Dual system, dual module multi-functional mounter.

Mounting components: LED,capacitors,resistors,IC,shaped components,etc.

Applicable to vibration feeding system for lens.

Exclusive patented technology:

Electronic feeder feeding system

Vision for the flight identification, Mark correction

Non-stop refueling capabilities

Auto-optimization feature after coordinated generated, etc.

Produce two different products at the same time.

Vision System No. of Camera 4 sets of imported camera
Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 60000CPH(optimum)
Components LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0603)
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 8 kw
Operating Environment 23℃±3
Conveyor Transmission Max Length:500mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor

Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed

Technical Parameter

led bulb assembly machine/smt production line

PCB PCB length width Max:1200*350 mm Min:50*5 0mm
PCB thickness 0.5~5mm
PCB Clamping Adjustable pressure pneumatic.
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 2*17PCS
No. of nozzles Dual module, totally 16
Feeder type Electronic feeder

Packing & Shipping

Multi Functional SMT Mounting Machine 220 AC 50 HZ 60000 CPH Mounting Speed

Package: Standard export package(Wooden case with vacuum package)

Shipping: Shenzhen port within 15 days after payment

About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free.Visit customer regularly and gather information.

Provide latest information about technology and equipment.

FAQ

Q: Why choose us ?

We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.

Q: What is your delivery date?

The delivery date is about 15 days after receipt of payment.

Q: What's the credibility of your brand?

Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q:What are the main LED products do our machines for?

There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.

If you are interested in our products, please feel free to contact me and I will be happy to answer any questions you have!
