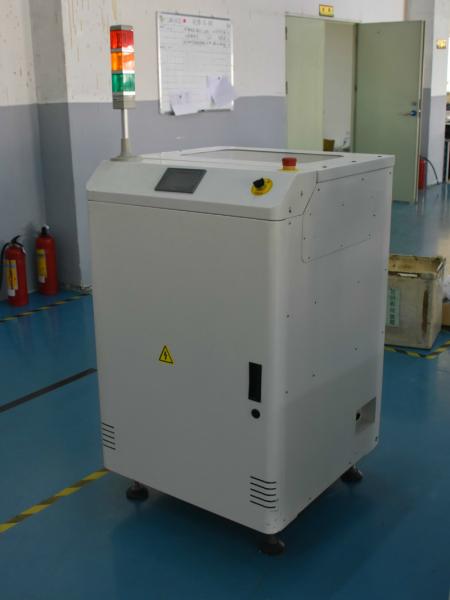

Horizontal T-type angle machine For SMT Mounting Machine With 7mm flat belt
Horizontal T-type angle machine For SMT Mounting Machine With 7mm flat belt
Horizontal T-type angle machine For SMT Mounting Machine With 7mm flat belt
Horizontal T-type angle machine For SMT Mounting Machine With 7mm flat belt
Horizontal T-type angle machine For SMT Mounting Machine With 7mm flat belt
Horizontal T-type angle machine For SMT Mounting Machine With 7mm flat belt
Specifications
Brand Name :
ETON
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50
Delivery Time :
30
Packaging Details :
Standard export package(Wooden case with vacuum package)
Dimenion :
L800*W800*H1200
Rail length :
500mm
Rail height from the ground :
920±30mm
Belt :
7mm flat belt
PCB conveying speed :
9M/Min
Description

Horizontal T-type angle machine

(two in one out, add blocking cylinder in front of the cornering machine)

Features:

  1. Fully enclosed box shape, Rotating and translating movements are smooth, gentle and accurate.
  2. T type setting;90 ° rotation (clockwise rotation) used to change the direction of PCB's at the corner of the SMT production line to achieve the function change flow direction.
  3. Set of electric control box

Horizontal T-type angle machine For SMT Mounting Machine With 7mm flat belt

Technical parameter

Dimension L800*W800*H1200
Rail length 500mm
Width adjustment range 50~390mm
PCB Length Width Max: L460*390mm
Rail height from the ground 920±30mm
Translation distance 100 mm
Maximum swing F diameter φ650mm
Belt 7mm flat belt
PCB conveying speed 9M/Min
Gas source 4~6kg/㎝2
Power 220V AC 50HZ/2A

About the quality:

One year warranty

Visit customers regularly to know the usage status and collect customers' opinions

Regularly provide customers with the latest production technology and equipment information

Company Profile

Shenzhen ETON is a LED mounter in this line about 12 years. With the trends of global green, energy-saving and requirements of production process, ETON did research and development cooperated with the experts from United States, Taiwan, Hong kong and multi-technical staff for four LED automatic High-speed placement machine products.

FAQ

Q:How long is the time of delivery?

Generally, the test delivery period is one month.

Q: What is your delivery date?

The delivery date is about 15 days after receipt of payment.

Q: What's the credibility of your brand?

Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q:What are the main LED products do our machines for?

There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.

shipping& packing

shipping in shenzhen port 15 days after payment
packing : standard export packing. wooden case with vacuum packing.
