52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
Specifications
Brand Name :
ETON
Model Number :
KT10S
Certification :
CE,CCC,SIRA
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Warranty :
1 Year
Application :
SMD Production Line
Power supply :
220AC 50HZ 1.5KW
Condition :
New
Weight :
2080KG
Mounting speed :
48000 CPH(Optimal speed)
Dimension :
1460*2015*1654mm
Feeders :
52 PCS(option 104 PCS), IC tray option
Pcb thickness :
0.5-5 mm
Description

HOT type Blazer series 48000 capacity 52 pcs heads SMT placement machine

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent
ModelKT10S
Dimension1460*2015*1654mm
Total weight2080kg
PCB sizeMax:500*470mm(Length can be customized) Min:50*50mm
PCB thickness0.5-5mm
Mounting precisionCHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed48000 CPH(Optimal speed)
ComponentsLED, capacitor, resistors, shaped components,etc
Power consumption220AC 50HZ 1.5KW
Feeder station52 PCS(option 104 PCS), IC tray option
No. of head10 PCS


Market

As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:

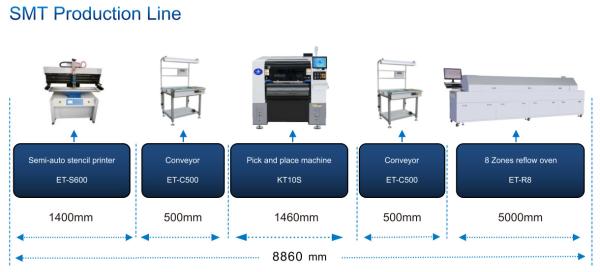

SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
52 Pcs Heads SMT Placement Machine HOT Type Blazer Series 48000 Capacity

FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.

Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.


Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.

Contact me:
Whatsapp/Wechat: +8613632769526
Email: Noah@eton-mounter.com
