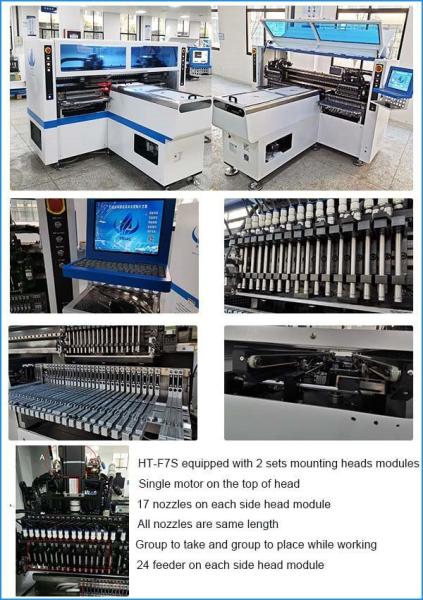

SMT mounting machine HT-F7S 180K for 0.5M Strip light PCB assembly machine
LED module mounter machine introduction
LED module mounter machine also called pick and place machine/ placement machine/SMT machine. It is one of SMT Line. The function of mounter is picking components and then mounting on the PCB. It is automatically SMT Machine.
In SMT production line, there are different machines for different module with different functions. Included Loader, Conveyor, Stencil printer, pick and place, reflow oven, un-loader, etc.
F7S Mounter main technology parameters
1. Module: HT-F7S
2. Machine functions: Picking components and then mounting on the PCB
3. Mounting mode: Group picking and group mounting, feeding missing components automatically
4. PCB Clamping: Adjustable pressure pneumatic
5. System: Windows 7
6. Display: Touch screen monitor
7. No. of camera : 5 pcs digital camera, vision alignment, mark correction
8. Mounting speed: 150000-170000 chip per hour
9. Power consumption: 5 kw
10. X,Y, Z Axis Drive way: High-end magnetic linear motor+ servo motor
Model: | HT-F7S |
PCB Length Width: | Max:1200*330 mm Min:100*100 mm |
Mounting speed: | 150000-180000 chip per hour |
No. of Feeder station: | 68 PCS |
Power | 380 AC 50HZ |
Dimension: | 2700*2300*1550 mm |
PCB Clamping: | Adjustable pressure pneumatic |
Components: | SMD LED 3014/3020/3528/5050/5735/5630 and resistor, capacitor, bridge rectifiers, etc |
No. of Nozzles: | 34 PCS |
Feeding way | Electric feeder with double motor |
Application
1.Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps.
2.Can mount 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip.
3.Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
