40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm
Specifications
Brand Name :
ETON
Model Number :
YT-101S
Certification :
CE,CCC,SIRA
Place of Origin :
China
MOQ :
1 Set
Price :
USD 46,000.00/ 1Unit/Units
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets per month
Delivery Time :
30 work dayes
Packaging Details :
Filming packing、vacuum packing、wooden packing
Dimension(L*W*H) :
2154*1376*1762mm
Weight :
1700kg
PCB length width :
Max size:500*350mm
PCB thickness :
0.5~4.5mm
Repeat precision :
±0.02mm
Mounting height :
≤20mm
No.of camera :
2 PCS camera
Components range :
Min 0201~40*40MM Packages and IC etc
Rail :
Rail 1 is fixed
Power consumption :
380AC50HZ 4KW
Optimum Mounting speed :
40000CPH
No. Of feeders station :
16 PCS ,tape reel packages 32 PCS
No. Of head :
10 PCS
Feeding way :
Intelligent electric feeder with double motor
Description

Min 0201-10mm surface mount pick and place machine

Machine main parameter

Camera

Head flight vision recognition component

Vision alignment + Mark correction
Repeat precision ±0.02 mm
Mounting height ≦15 mm
Optimal speed 45000 CPH
Position mode Optical
Component range Min 0201~10mm packages and IC etc.
Position mode Optical
No.of heads 10 pcs
X,Y,Z Axis drive way High-end magnetic linear motor + Servo motor
Feeding way Intelligent double head feeder

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.

40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm

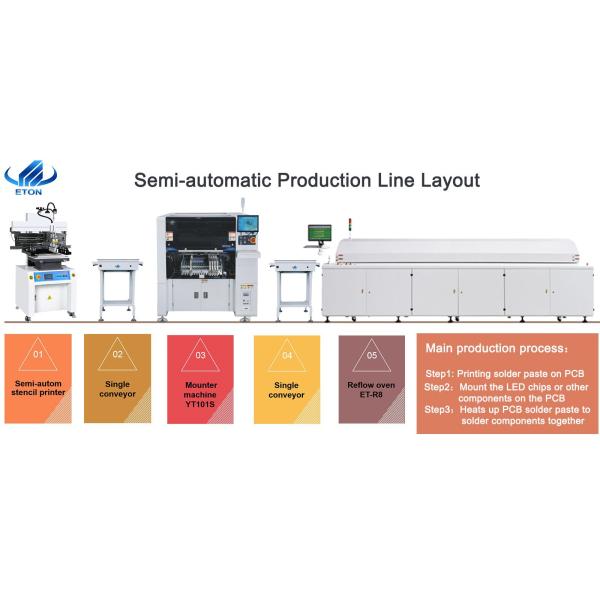

SMT Line solution

40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm

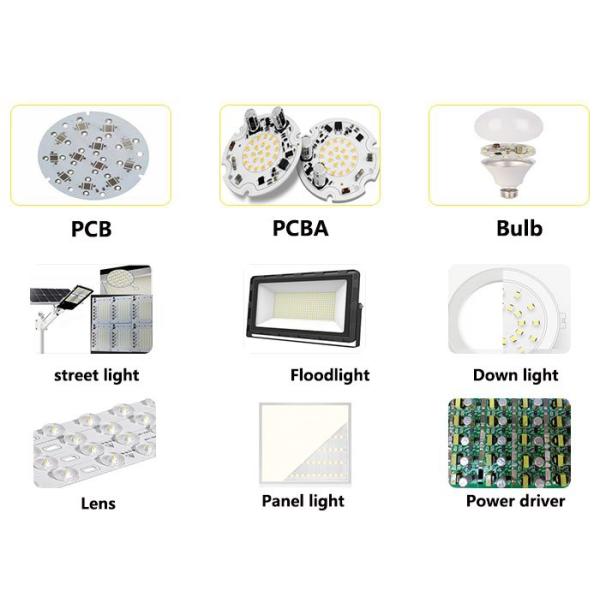

Machine application

40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm

Exhibition

Our products are exported to more than 20 countries overseas, such as South Korea, India,Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And we also participate in many abroad and domestic Exhibition.

40000CPH Surface Mount Pick And Place Machine Ultra High Precision Minimum Size 0201-10mm

FAQ

Q.What is your merits of the machine to others production?

A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.

Q. How many hours does the machine can operate per day?

A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.

Q. Is the machine easy to operate?

A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.

Q. If I need a perfect line of the machine can you supply?

A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
