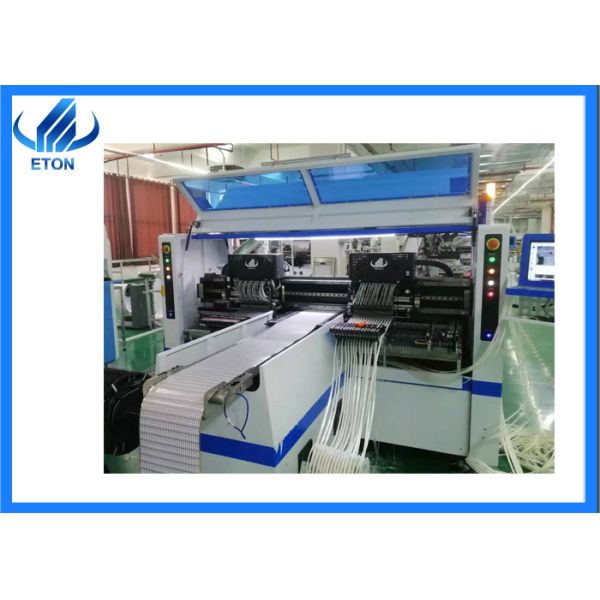

ETON 250000CPH automatic pick and place machine ht-t9 led chip smd mounting machine
ETON 250000CPH automatic pick and place machine ht-t9 led chip smd mounting machine
Specifications
Brand Name :
ETON
Model Number :
HT-T9
Certification :
CE,CCC,SIRA
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 60000~80000/sets
Payment Terms :
T/T
Supply Ability :
50 sets per mouth
Delivery Time :
30 days after deposit
Packaging Details :
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
name :
pick and place machine
components :
LED 3014/3020/3528/5050 resistor capacitors
feeders :
68 PCS
nozzles :
68 PCS
speed :
250000CPH
PCB size :
250mm*any length
warranty :
one year
drive way :
high end magnetic linear motor +servo motor
power :
380AC,50 HZ
Power consution :
6KW
Description

high speed pick and place equipment with 250000CPH smd placement machine in smt production line for 5m 10m flexible strip light

Features of SMT pick and place machine

Improved Usability
available for 5m,50m or any length of flexible strip and roll to roll.and available for RGB,mounting components about LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Improved Productivity
Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 250000 CPH, 68 feeders station and 68 nozzles. It can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.
High Precision
Equipped with 5pcs of cameras: 1pc of Mark recognition camera, 1pc of 500 million pixels high precision recognition camera, and 4pcs of synchronous high-speed recognition cameras, could effectively mount 0402-5050 components, LED chip etc.
Strong durability
The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.

ETON 250000CPH automatic pick and place machine ht-t9 led chip smd mounting machine

Technical Parameter of Pick and place machine

HT-T9
PCB PCB length width 250mm*any length
PCB thickness 0.5~1.5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
software R&D independently
display LED monitor
Input device Keyboard , mouse

Vision

system

 No.of camera

5 sets of imported camera

Vision alignment,mark correction
Mounting height <5mm
Mounting speed 200000CPH
Components LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Components space 0.5mm
No.of feeders station 68PCS
No.of nozzles 68PCS
Power 380AC 50HZ
Power consumption 6KW
Transmission direction Single (left to right or right or left)
Transmission mode Auto online drive
X,Y,X axis drive way Servo motor + High-end magnetic linear
Feeding way Electric feeder with double motor

What is the position and role of this machine in the production line ?

Pick and place machine:The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB

stencil printer:Operate the stencil printer to print the solder paste onto the PCB

reflow oven:The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.

Conveyor:Check whether the PCBA is misaligned or shift.
