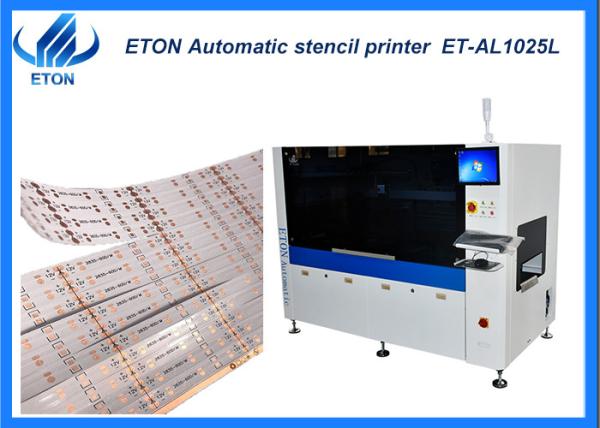

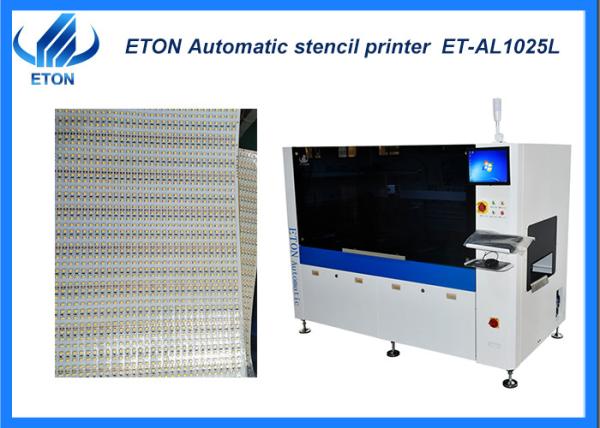

CNC SMT 0.025mm Accuracy Auto Stencil Printer For LED Fleixble Strip
CNC SMT 0.025mm Accuracy Auto Stencil Printer For LED Fleixble Strip
CNC SMT 0.025mm Accuracy Auto Stencil Printer For LED Fleixble Strip
CNC SMT 0.025mm Accuracy Auto Stencil Printer For LED Fleixble Strip
Specifications
Brand Name :
ETON
Model Number :
ET-AL1025L
Certification :
CE,CCC,SIRA
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Warranty :
1 year
Name :
ET-AL1025L
Application :
LED Any length of flexible strip
Power supply :
380AC 50HZ
Product name :
Automatic SMT stencil printer machine
Weight :
600KG
Dimension :
1754(L)X1249(W)X1600(H)mm
Table Adjustment ranges :
X:±5mm;Y:±5mm;θ:±2°
Cycle Time :
≤9s (Exclude Printing & Cleaning)
Control Method :
PC control
Description

CNC SMT 0.025mm accuracy SMT LED fleixble strip auto stencil printer

Machine configuration

● Programmable suspension printing head;

*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;

*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;

● Standard stainless steel scraper, unique design, improve the service life of the blade;

● Downward vision alignment system;

● CNC guide rail adjustment;

● Industrial controlled computer,Windows XP interface operating system;

● Built-in software diagnostic system;

● SMEMA interface.

Technical parameter

Screen Frames Min Size 850mm
Max Size 550mm
Thickness 25~45mm
FPCB Min Size 50mm
FPCB Max Size 260mm
FPCB Thickness 0.5~5mm
FPCB Warpage Max. FPCB diagonal 1％
Transport Height 900±40mm
Transport Direction Left-Right
Transport Speed Max 1000mm/S Programmable (Adjustable)
Board Location Support System Platform jacking tension
Clamping System Edge clamp fixed
Print head Two independent motorized print heads
Squeegee Speed 6~300mm/sec
Squeegee Pressure 0~10Kg/cm2
Squeegee Angle 55°(Standard)
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Manual cleaning
Table Adjustment ranges X:±5mm;Y:±5mm;θ:±2°
Machine
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time ≤9s (Exclude Printing & Cleaning)
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 1.5KW
Control Method PC Control
Machine Dimensions 1754(L)X1249(W)X1600(H)mm
Machine Weight Approx:600Kg
FPCB transport over plate height 20mm

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

CNC SMT 0.025mm Accuracy Auto Stencil Printer For LED Fleixble Strip

Our Exhibitions

Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.

CNC SMT 0.025mm Accuracy Auto Stencil Printer For LED Fleixble Strip

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.

CNC SMT 0.025mm Accuracy Auto Stencil Printer For LED Fleixble Strip

FAQ

Q. Can I use CIF price?

A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.

Q. What is your machines quality?

A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.

Q. How many hours does the machine can operate per day?

A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
