multifunctional single module mounter with magnetic linear motor for bulb panal light
multifunctional single module mounter with magnetic linear motor for bulb panal light
multifunctional single module mounter with magnetic linear motor for bulb panal light
multifunctional single module mounter with magnetic linear motor for bulb panal light
multifunctional single module mounter with magnetic linear motor for bulb panal light
multifunctional single module mounter with magnetic linear motor for bulb panal light
Specifications
Brand Name :
ETON
Model Number :
HT-E8S-1200
Certification :
ccc
Place of Origin :
Guangdong,China
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
30 days
mounting speed :
45000 CPH
mounting precision :
±0.04mm
L*W*H :
2550*1650*1550mm
pcb size :
max:1200*500mm Min:100*100
mounting mode :
group/seperately picking and separately placing
XYZ drive way :
high-end magnetic linear motor+servo motor
Description

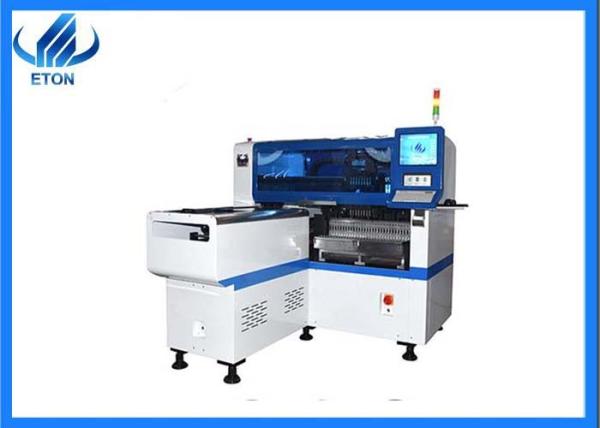

一. Product Image

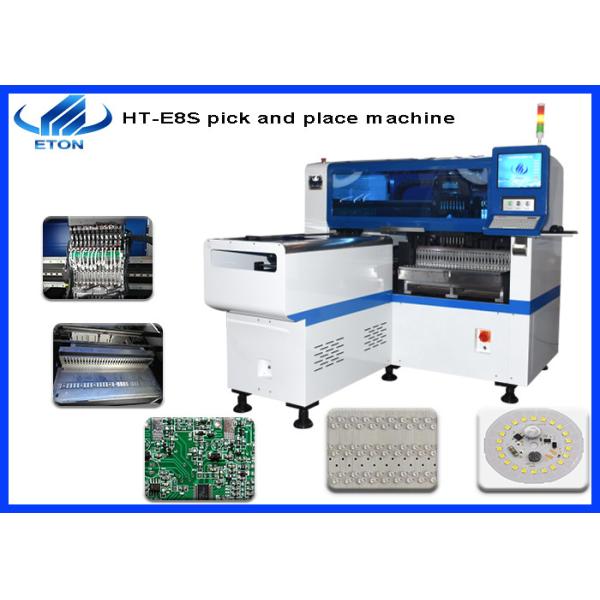

HT-E8S can apply to wide components,like LED chip, capacitor ,resistor, IC, shaped components, etc.

It can mounte wide products, including drive motor, electric board, lens, DOB bulb, linear bulb etc.

HT-E8S-1200 is a machine designed and produced by ETON with an optimum production capacity of 45000 CPH.

multifunctional single module mounter with magnetic linear motor for bulb panal light

二. Parameter table

Brand Eton
Model name HT-E8S
Length*width*height HT-E8S-1200: 2550*1650*1550
HT-E8S-600: 1550*1650*1550
Weight HT-E8S-1200: 1700
HT-E8S-600: 1500
PCB size HT-E8S-1200: MAX1200*500 MIN 100*100
HT-E8S-600: MAX600*500 MIN100*100
Capacity 45000CPH
Voltage AC380V,50Hz
No. of camera 2sets of imported camera
No. of head Single module 12pcs
No. of feeder station Single module 28pcs
Drive motor High-end magnetic linear motor+servo motor
Warranty 1 year
Place of origin Guangdong, China

三. Product Feature

single module magnetic linear motor multifunctional pick and place machine

each head is controlled by a servo motor, The two work together. PCB boards with different angles can be mounted, such as the circular state of bulbs

component: min. size 0402, max height 15mm
electric feeder feeding system
vision alighnment flight identification + Mark correction.

Mark camera identification, scan the reference point of PCB board to prepare for the preparation of mounting program, and flight identification camera identifies whether there is material leakage, so as to ensure the high accuracy of mounting.
non-stop material reloading function

Auto-optimization after coordinates generate

It adopts linear motor, which has higher precision and longer service life.


四. Company Profile

Since its establishment in 2011, ETON has become one of the leaders in the global photoelectric high-speed Mounter after nearly ten years of development. The high-speed machine developed by ETON has changed the market price of LED lamps, obtained various certificates and applied for more than 100 invention patents.

a. ETON sits in Baoan District, Shenzhen city, a prosperous and potential place, full of opportunities.

b. We own our own industrial area, total 5w m²,equipped with production centre, R&D center and quality inspection center, which can assure you by powerful company ability.

c. We account 90% market share in China, and our products have exporeted to various countries, encompassing India, the United States, Eygpt, etc.

d. We provide various premium various products for your multiple needs.

multifunctional single module mounter with magnetic linear motor for bulb panal light

五. Packaging and transportation

Packaging: standard export packaging or customized packaging.

Port of shipment: Shenzhen

Production period: 30 days (≤50 sets), if it is more than 50 sets, it will be discussed again.

multifunctional single module mounter with magnetic linear motor for bulb panal light

六. Service

Pre-sale:

A. Provide professional advice on SMT production line.

B. Recommend the most suitable model according to the product.

C. Provide the best quotation at ex-factory price

After-sales:

A. Before shipment, the machine will be tested.

B. Provide machine-free installation training, video training and online training.

C. Professional after-sales team, solve problems in the first time.
