Specifications
Brand Name :
ETON
Model Number :
HT-F7S
Certification :
CE,CCC,SIRA,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 working days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Repeat Precision :
±0.02mm
Total Weight :
1700kg
Nozzles :
68PCS
Warranty Period :
1 Year
Conveyor Transmission :
Max length 1200 mm
Warranty :
1 Year
Power supply :
380AC 50HZ
Condition :
new
Description

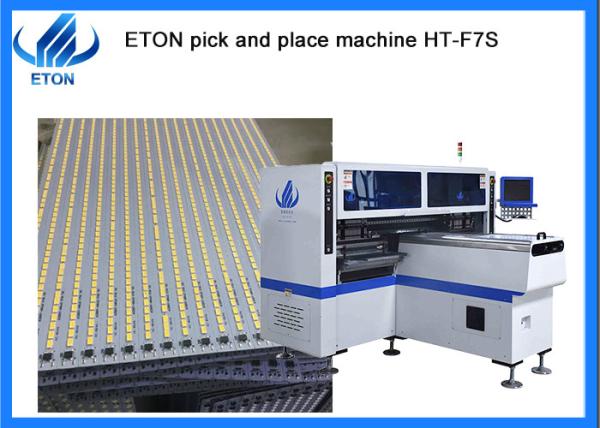

Panel light Max 1200*330m PCB SMT chip mounting high speed machine

Production description
Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.
Features

  • Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
  • Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for RGB.
  • Exclusive patent technology: Group picking and group mount placing.
  • IPC9850 capacity: 150000-180000 CPH

Machine parameter

Model HT-F7S
Dimension 2700*2300*1550mm
Total weight 1700kg
PCB length width

Max: 1200*330mm

Min: 100*100mm
PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and group placing
Mounting precision ±0.02mm
Mounting speed 150000-180000 CPH
No. of feeders station 68 PCS
No. of head 34PCS

Market

ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.

Panel Light Max 1200*330m PCB SMT Chip Mounting Machine High Speed

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.

Panel Light Max 1200*330m PCB SMT Chip Mounting Machine High Speed

Related machine

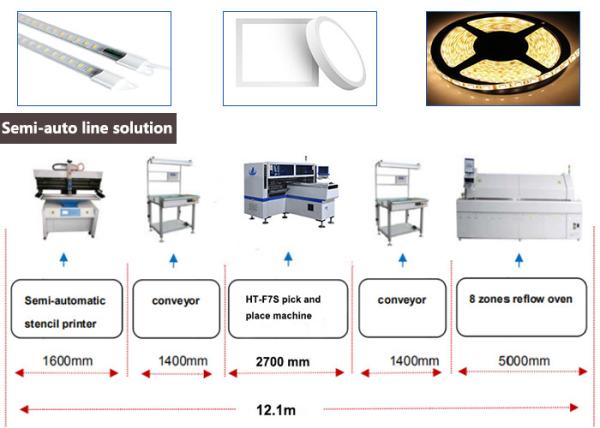

We can provide a whole SMT production line,led light production line:

1.Pick and place machine

2. Loader machine

3. Conveyor machine

4. Stencil printer machine

5. Reflow oven machine

6. Unloader machine

7. Solder paste mixer

8. Roll to roll led strip light assembly machine

Panel Light Max 1200*330m PCB SMT Chip Mounting Machine High Speed
