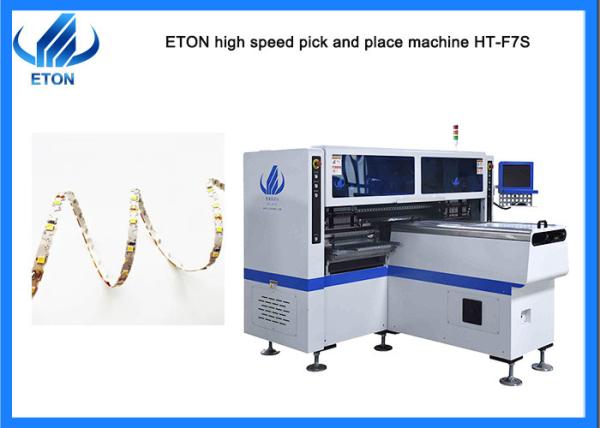

Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light
Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light
Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light
Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light
Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light
Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light
Specifications
Brand Name :
ETON
Model Number :
HT-F7S
Certification :
CE,CCC,SIRA,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 working days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Warranty :
1 year
Application :
LED strip, tube, panel light
Power supply :
380AC 50HZ
Condition :
New
Product name :
Automatic SMT pick and place machine
Weight :
1700KG
Mounting speed :
150000-180000 CPH
Dimension :
2700*2300*1550mm
Pcb thickness :
0.5-5 mm
Description

Group mount LED tube panel light Surface mounted pick and place machine

Features

  • High-end magnetic linear motor+ servo motor
  • Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.
  • Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Exclusive patent technology: Group to pick and group to mount.

IPC9850 Capacity: 150000-180000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Model HT-F7S
Total Weight 1700kg
PCB
PCB Length Width Max:1200*330mm Min:100*100mm
PCB Thickness 0.5-5mm
Mounting Precision ±0.02mm
Mounting Height ≦5mm
Mounting Speed 150000~180000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed 0.5mm
No. of Feeders Station 68 PCS
No. of nozzles 34 PCS
Power 380AC 50 HZ
Power Consumption 6kw
Transmission Speed Max Length :1200 mm
X,Y,Z Axis Drive way High-end magnetic linear motor+ servo motor
Feeding way Electric feeder with double motor

Machine application

Application: apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. And also suitable for mounting tube, panel light ,bulb etc.

PCB size: Max:1200*330mm;Min:100*100mm.

Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

Group Mount Surface Mount Pick And Place Machine For LED Tube Panel Light

FAQ

Q. Is the machine easy to operate?

A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.

Q.What kind of machine you have?

A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
