SMT production line connecting equipment 1400MM PCB conveyor

Specifications:

The conveyor is used for connection between SMT production lines, and can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.

Conveyor generally includes: a rack, two conveyor belts that rotate in parallel on the rack, the circuit board is placed on the two conveyor belts for transportation, and the existing conveyor belts are generally fixed on the rack, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, so that it is not convenient to convey circuit boards of different sizes, so that the applicability of conveyor is low.

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

Our Exhibitions

Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

Packages

Our package step is follow the blowing:

STEP 1: Film packaging to prevent the dust and water;

STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;

STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;

STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.

Delivery: by sea, air, land transport.

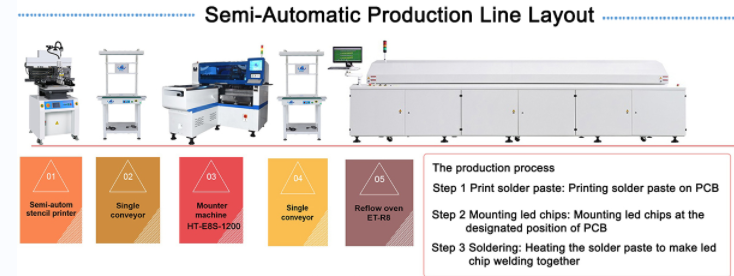

SMT Line solution

A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.

The blowing is the function of each machine:

• Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
• Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
• Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
• Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;
