LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads
LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads
LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads
LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads
LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads
LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads
Specifications
Brand Name :
ETON
Model Number :
HT-F9
Certification :
CE,CCC,SIRA,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 working days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Warranty :
1 Year
Name :
SMT Pick and Place Machine
Application :
LED strip, tube, panel light
Power supply :
380AC 50HZ
Condition :
new
Weight :
1700KG
Mounting speed :
200000-250000 CPH
Dimension :
2700*2300*1550mm
Feeders :
68 pcs
Pcb thickness :
0.5-5 mm
Description

Magnetic linear motor 68 PCS heads LED linear light SMT machine

Market

Our products are exported to more than 30countries & regions

Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.

LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads

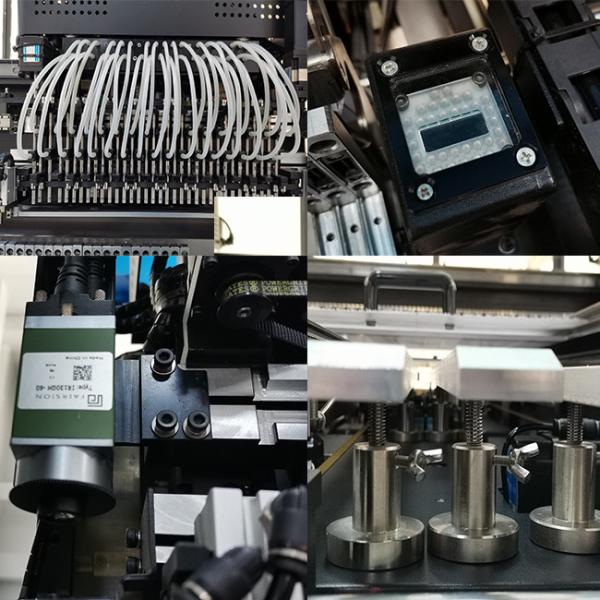

Features

  • Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials at the same time with high capacity. available for board with any proportion of LED chip and resistor.

  • Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.

  • Calibration automatically, high precision, available for RGB.

  • Exclusive patent technology: Group to take and group to mount

Model HT-F9
Dimension
Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width Max:1200*330mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 PCS ( Digital camera)
Vision alignment, MARK correction
Repeat Mounting Precision ±0.02mm (Repeat precision)
Mounting Height ≦5mm
Optimal Mounting Speed 200000~250000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Space 0.5mm
No. of Feeders Station 68 PCS
No. of head 68 PCS
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Conveyor Transmission Max Length :1200 mm
Transmission Speed >500 mm/sec
Transmission Direction Single(left→ right or right→ left)
Transmission Mode Online drive
Positioning way Optical
Air Supply 0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor+ servo motor
Feeding way Electric feeder with double motor

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads

SMT Line solution

The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.

LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads

Related machine

We can provide a whole SMT production line,led light production line:

1.Pick and place machine

2. Loader machine

3. Conveyor machine

4. Stencil printer machine

5. Reflow oven machine

6. Unloader machine

7. Solder paste mixer

8. Roll to roll led strip light assembly machine

LED Linear Light SMT Machine With Magnetic Linear Motor 68 PCS Heads
