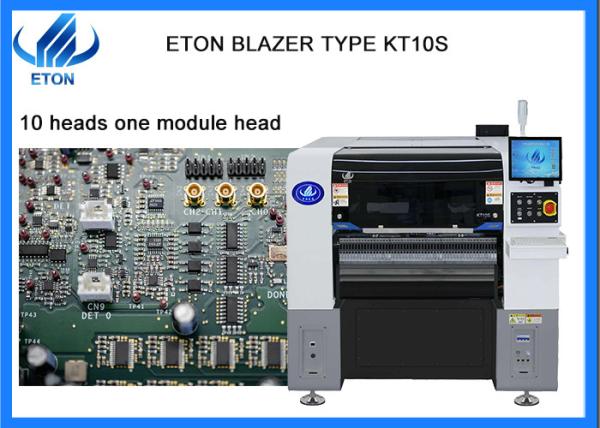

Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter
Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter
Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter
Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter
Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter
Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter
Specifications
Brand Name :
ETON
Model Number :
KT10S
Certification :
CE,CCC,SIRA,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 working days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Warranty :
1 year
Name :
SMT automatic Pick and Place Machine
Application :
LED lights, electrical products, household appliance
Power supply :
220V,50-60HZ
Product name :
KT10S
Weight :
2080KG
Mounting speed :
48000 CPH(Optimal speed)
Dimension :
1490*2020*1650mm
Feeders :
52 PCS(option 104 PCS), IC tray option
Description

Max 500*470mm can be customized smt 48000 capacity pick and place machine

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent

Machine main parameter

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS

Machine application

Max PCB 500*470mm, suitable for Min 0201 components, which can mount various of LED lighting, such as LED bulb, DOB, LED lens, display, tube, flood light, panel light, household appliance, electrical board, power driver etc

Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter

Our advantage

ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 200 practical patents, 49 software copyrights of intellectual property technologies.

Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter

Packages

Our package step is follow the blowing:

STEP 1: Film packaging to prevent the dust and water;

STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;

STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;

STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.

Delivery: by sea, air, land transport.

Max 500*470mm Customized SMT Pick And Place Machine 48000 CPH SMT Mounter

Shipping and Delivery

We usually transport the goods to the port in containers and then ship them to the destination. For the transportation of machines, land transportation and air transportation are also possible.
